Product Descriptions

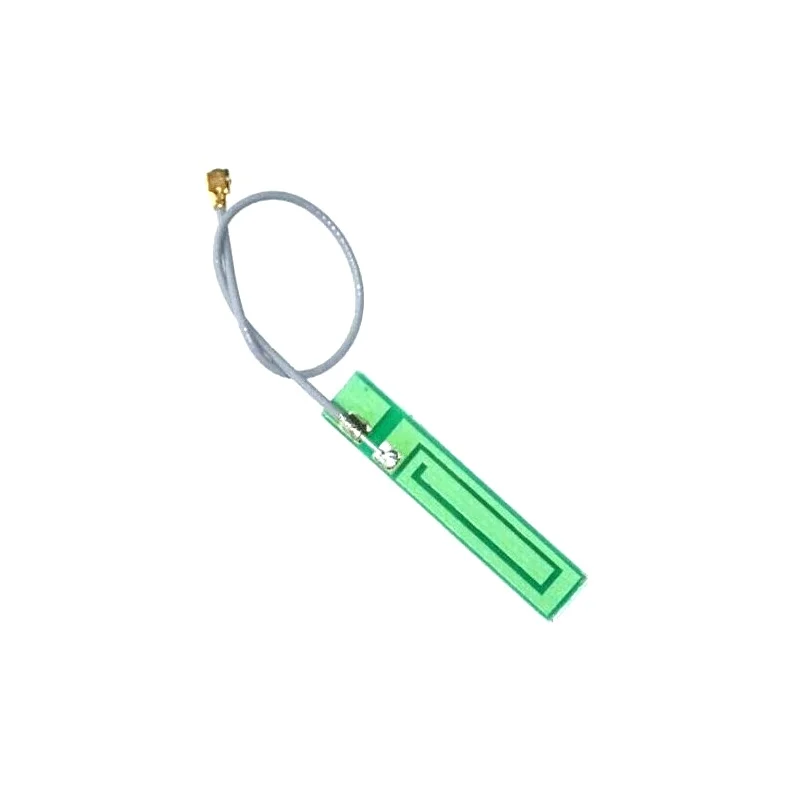

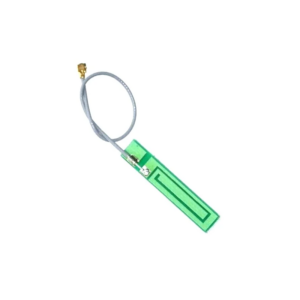

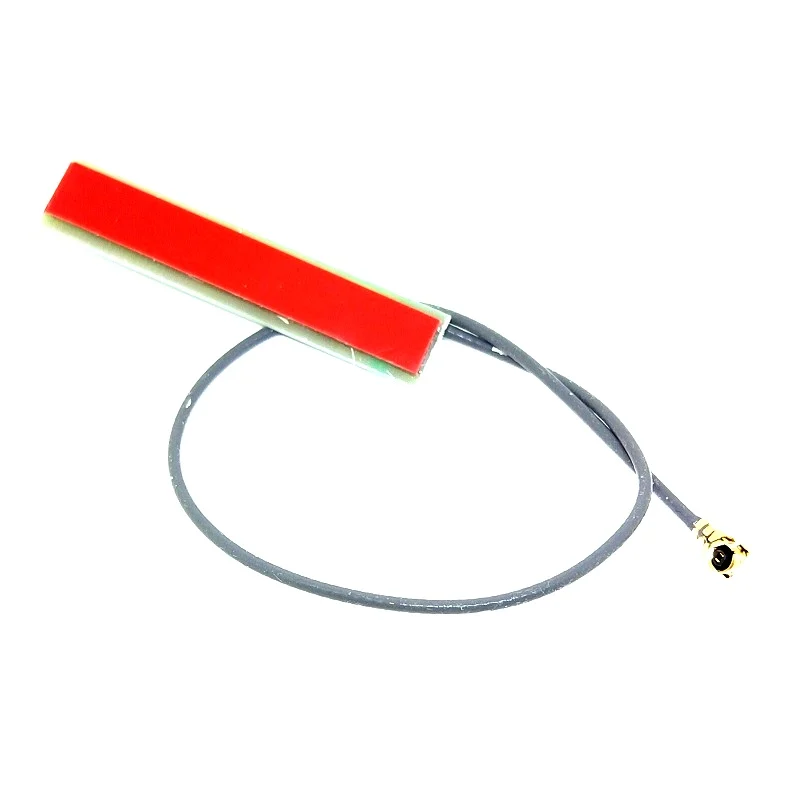

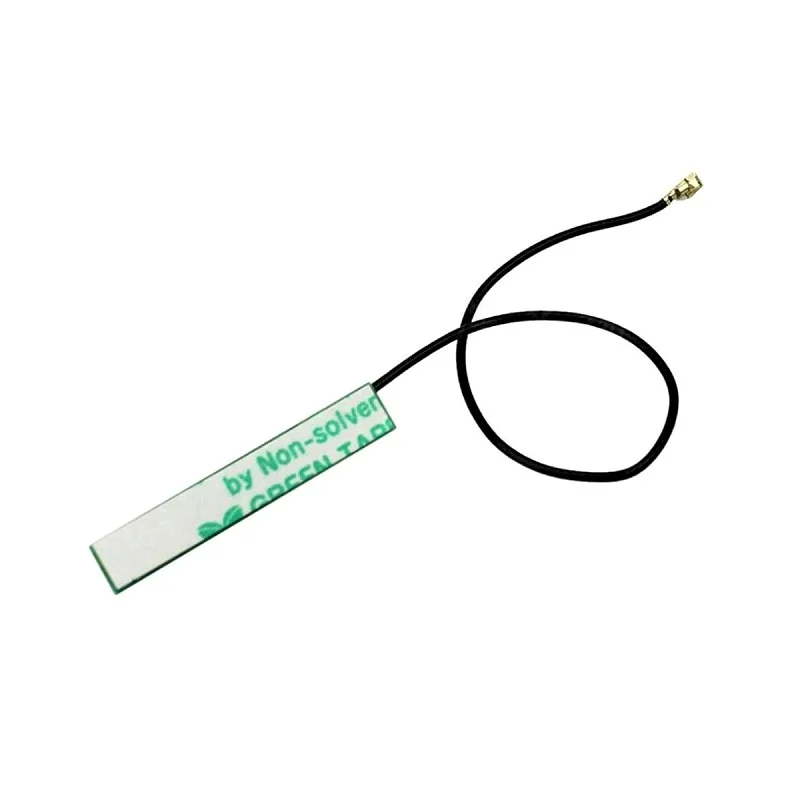

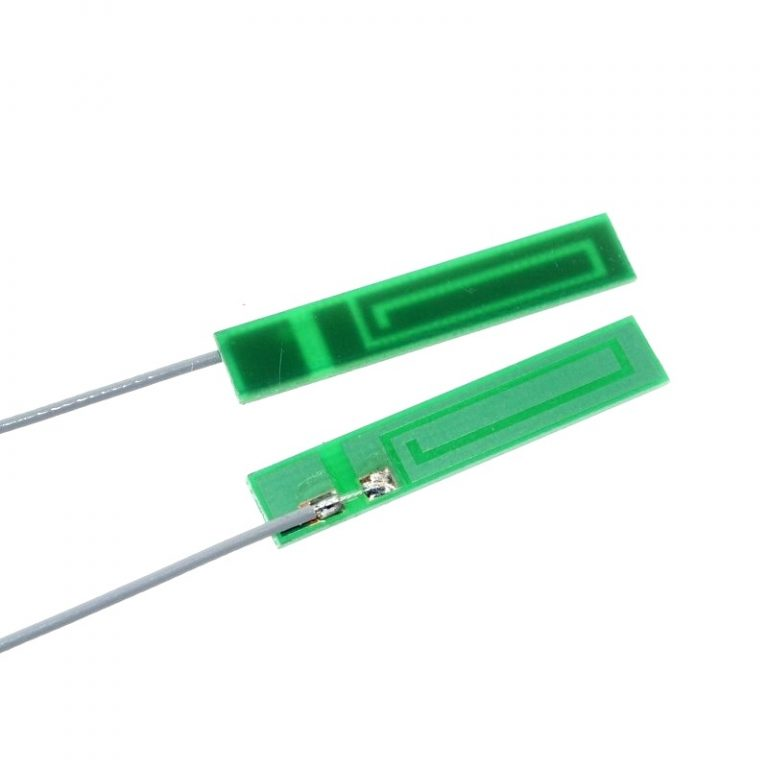

A 3 DBI GSM/GPRS/3G PCB Antenna with IPEX13 Connector is a wireless device that can transmit and receive signals. It is commonly used in telecommunication for communication purposes. A PCB (printed circuit board) antenna reduces the overall cost of the radio module, which is one of its main advantages.
Application: 2G, 3G, 15dBi ApplicationsÂ
Specifications
- Name: 2G 3G IPEX antenna

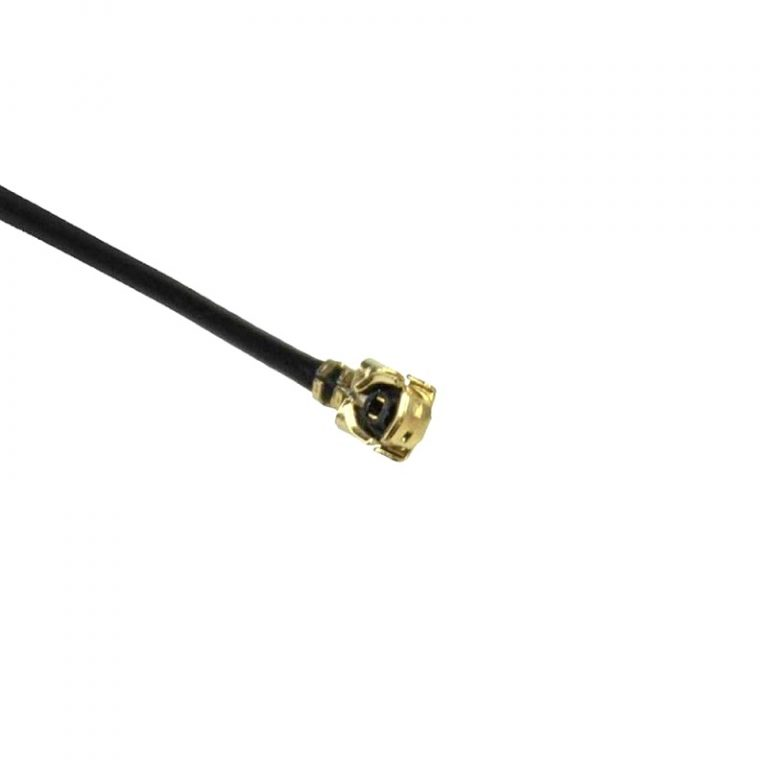

- Connector type: ipx13
- Standing Wave Ratio Definition: S.W.R <= 1.8
- Gain Definition: 3dBi( Typical )
- Frequency band definition: 800~960 1710~2170MHz
- Impedance Definition: 50 ohm
specification-
| Material | PCB |
|---|---|
| Product Name | 2G 3G IPEX antenna |
| Connector Type | ipx13 |
| Impedance definition | 50 ohm |
| Impedance (Ω) | 50 Ohm |
| Operating Temperature Range (°C): | 30 to ~ + 85°C |
| Shipping Weight | 0.005 kg |
| Shipping Dimensions | 4 × 2 × 1 cm |
Package Includes
- 1 x 15cm 3DBI GSM/GPRS/3G PCB Antenna with IPEX Connector
