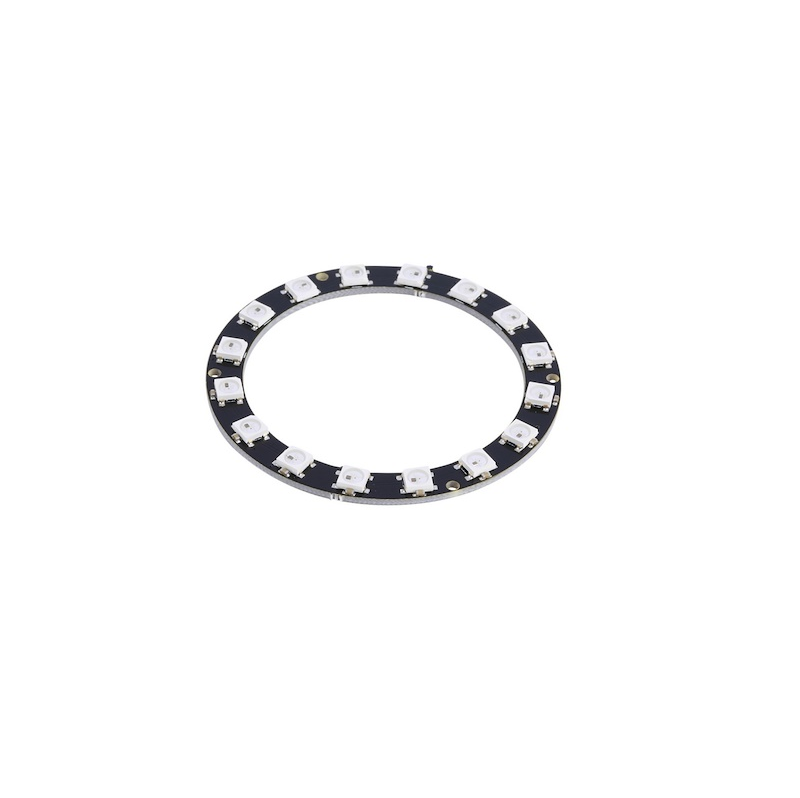

16Bit WS2812B 5050 RGB LED Built-in Full Color Driving Lights Circular Development Board

PRODUCT DESCRIPTION

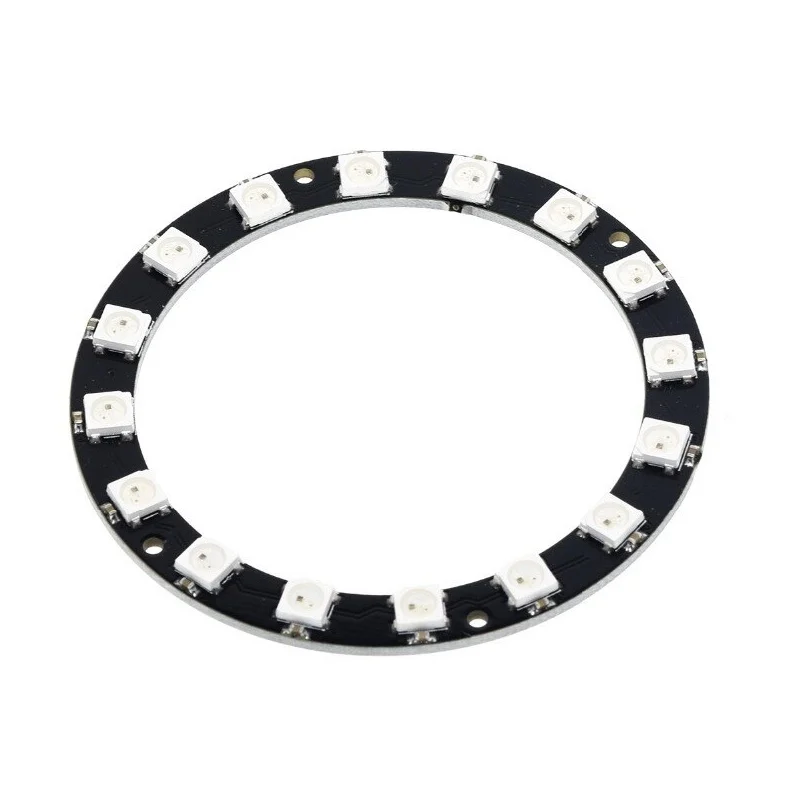

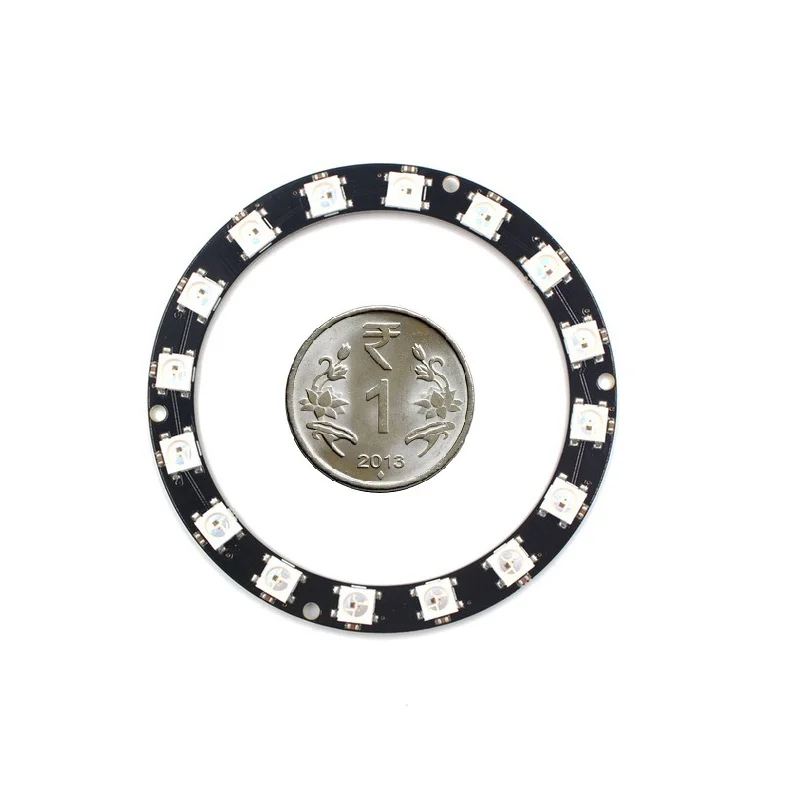

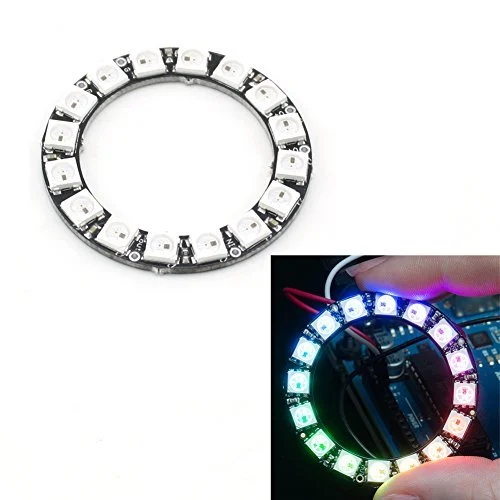

The 16Bit WS2812B 5050 RGB LED with Built-in Full Color Driving Lights is a circular development board featuring 16 vibrant NeoPixel LEDs arranged in a 68mm diameter ring. Each LED has an integrated driver chip, making them individually addressable for dynamic lighting effects.

These RGB ring lights are designed for easy chaining, with the output pin of one LED connecting to the input pin of the next (DI-DO). This allows you to control multiple LEDs using a single data line.

Each LED operates on a constant current drive of 18mA, ensuring consistent and uniform color across the entire ring, even with voltage fluctuations. The design eliminates the need for external resistors, keeping the setup clean and efficient. The ring operates on a 5V power supply, making it a simple and effective solution for custom lighting projects.

Characteristic :

This RGB ring utilizes single-wire communication to reduce I/O port load, and features the WS2812B driver chip, which simplifies the peripheral circuit with just a single capacitor. This design enables stunning visual effects. Additionally, the ring can be easily cascaded with other RGB lights using the same chip, connected via the Dout input port, offering flexibility without shape constraints.

Features:

1. The control circuit and the LED share the only power source.
2. Control circuit and RGB chip are integrated into a package of 5050 components, form a complete control of pixel point.
3. Built-in signal reshaping circuit, after wave reshaping to the next driver, ensure wave-form distortion not accumulate.
4. Built-in electric reset circuit and power lost reset circuit.
5. Each pixel of the three primary colors can achieve 256 brightness levels, or 16M colors full-color display, and scan frequency not less than 400Hz/s.
6. Cascading port transmission signal by a single line.
7. Any two points the distance more than 5m transmission signal without any increase circuit.
8. When the refresh rate is 30fps, cascade number is not less than 1024 points.
9. Send data at speeds of 800Kbps.
10. The color of the light was highly consistent
11. Full-color module, Full-color soft lights a lamp strip.
12. LED decorative lighting, Indoor/outdoor LED video irregular screen.

Specification:

Package Includes:

1 x 16Bit WS2812B 5050 RGB LED Built-in Full Color Driving Lights Circular Development Board
