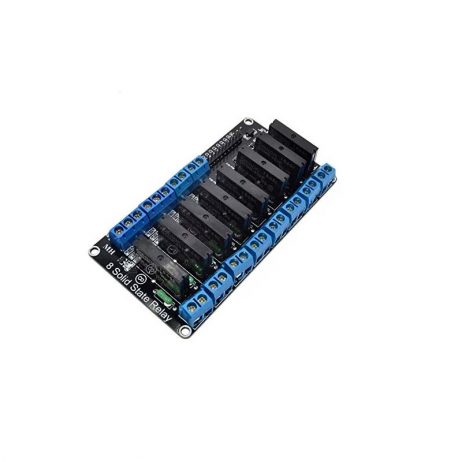

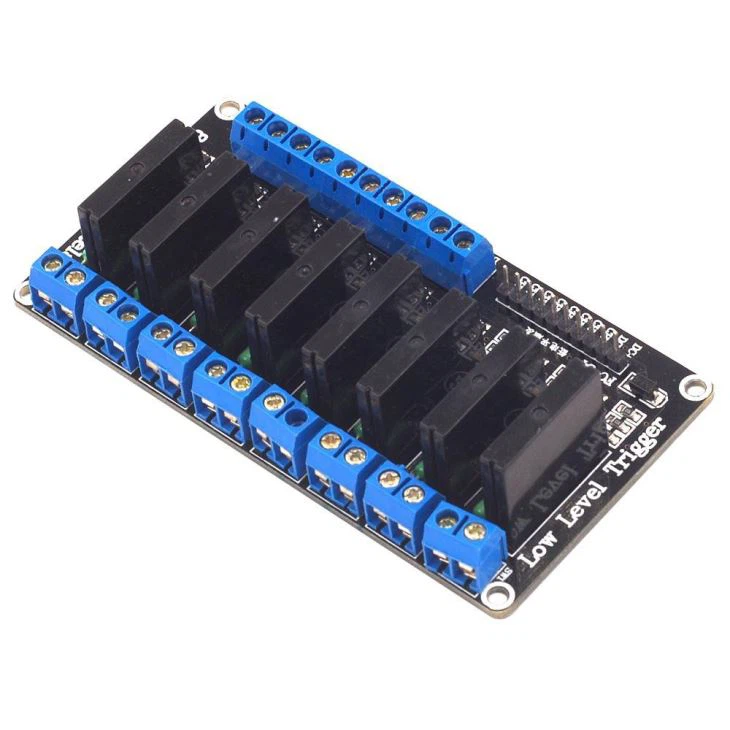

8 Channel 3-24V Relay Module Solid State Low Level SSR DC Control DC with Resistive Fuse
Introducing our 8 Channel 3-24V Relay Module Solid State Low Level SSR DC Control DC with Resistive Fuse, designed to offer unparalleled control and reliability for your electrical projects.
Features:
- Advanced Solid State Technology: This 8-channel relay module utilizes solid-state technology, offering superior performance and durability compared to traditional mechanical relays. Enjoy noise-free operation and an extended lifespan for your applications.
- Versatile Input Configuration: Each channel is equipped with a signal triggering input (IN1 to IN8), allowing easy control of individual relays through a low-level signal. Simply connect your microcontroller or other control circuitry to initiate switching.
- High Load Capacity: Control up to 8 loads, each with a capacity of up to 2 amps at 50 V DC. Whether you’re powering lighting systems, holiday displays, or other appliances, this relay module has you covered.
- Easy Installation: The module comes pre-assembled and undergoes rigorous electrical testing to ensure optimal performance. LED indicators for each relay provide visual confirmation of operation.
Specifications:
| Specification | Description |
|---|---|
| Part Number | H3MB-052D |
| Power Supply | 3-24VDC / 160mA |
| Switching Voltage (VAC) | 50 @ 2A |
| Isolation | Phototriac |
| Load Capacity per Channel | Up to 2 amps at 50V DC |
| Input Channels | IN1 to IN8 |
| Input Activation Level | Low level (active at low voltage) |
| LED Indicators | Yes, one for each relay channel |
| Mounting | Pre-assembled, ready for installation |
Applications:
- Lighting control
- Holiday displays
- Appliance automation
- Industrial equipment control
- DIY electronics projects
Package Includes:
1 x 8 Channel 3-24V Relay Module Solid State Low-Level SSR DC Control DC with Resistive Fuse
