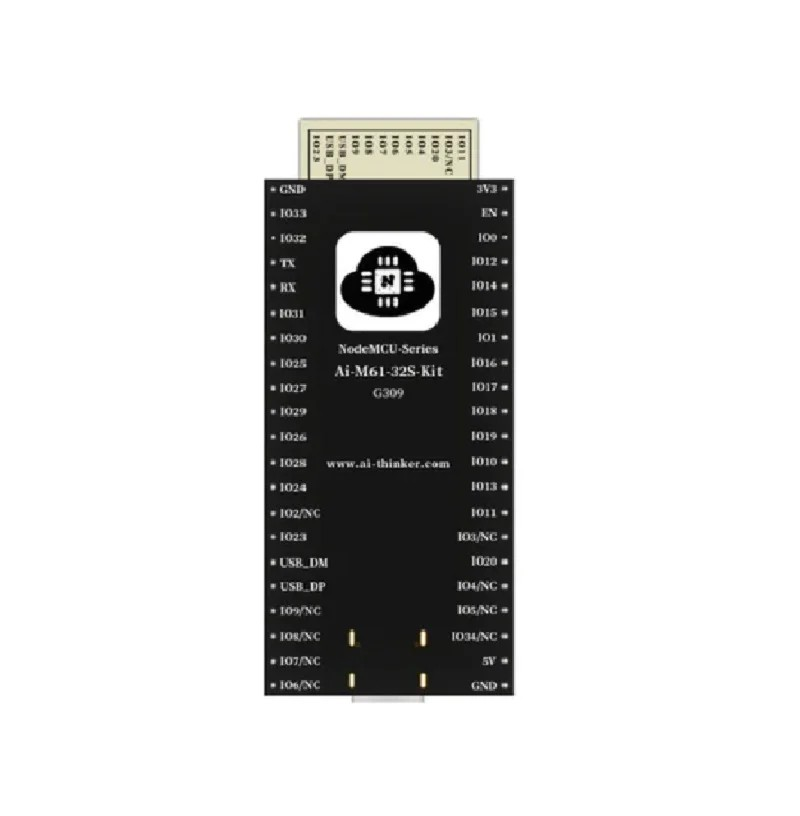

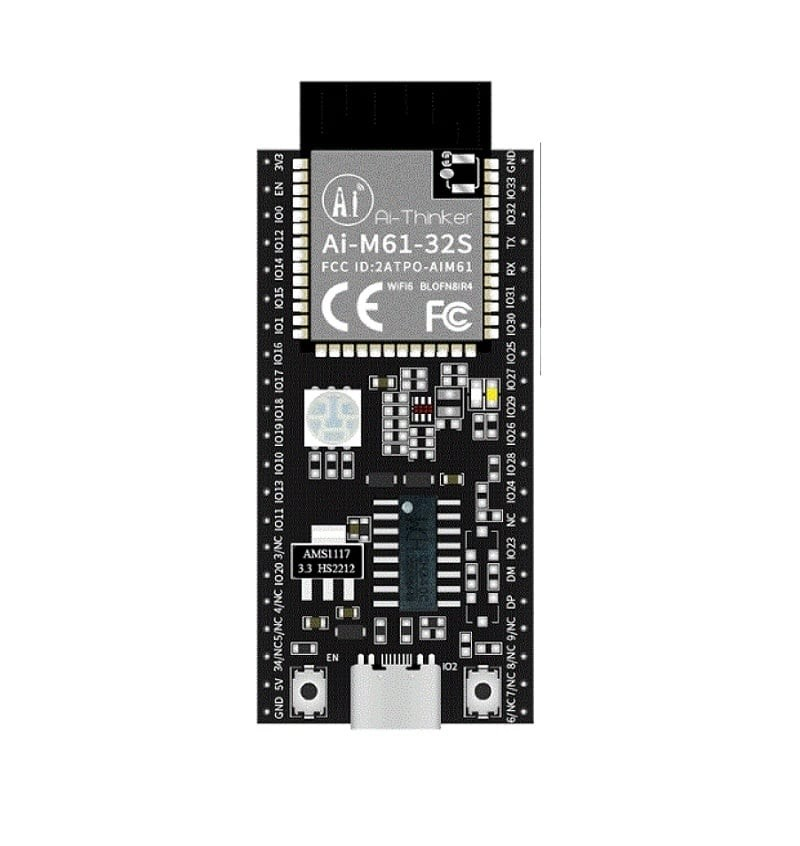

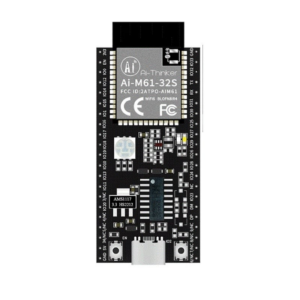

The Ai-M61-32S-Kit is a development board tailored for the Ai-M61-32S modules. The Ai-M61-32S is a Wi-Fi 6 + BLE 5.3 module created by Shenzhen Ai-Thinker Technology Co., Ltd. This module features the BL618 chip as its core processor, supporting Wi-Fi 802.11b/g/n/ax protocol, BLE protocol, and Thread protocol. The BL618 chip comprises a low-power 32-bit RISC-V CPU with a floating-point unit, DSP unit, cache, and memory, boasting a maximum operating frequency of 320M.
The Ai-M61-32S module offers an array of peripheral interfaces, including DVP, MJPEG, Display, Audio Codec, USB 2.0, SDU, Ethernet (EMAC), SD/MMC (SDH), SPI, UART, I2C, I2S, PWM, GPDAC, GPADC, ACOMP, GPIO, and more. Its versatility makes it suitable for a wide range of applications such as audio and video multimedia, Internet of Things (IoT), mobile devices, wearable electronics, smart homes, among others. Additionally, the Ai-M61-32S module’s Security Engine supports AES/SHA/PKA/TRNG, among other functions, facilitating image encryption and secure boot, thereby catering to diverse security needs within the IoT domain.
Features:
- Support Wi-Fi/BLE/Thread coexistence
- Wi-Fi security support WPS/WEP/WPA/WPA2/WPA3
- Supports 20/40MHz bandwidth, 1T1R, maximum rate 229.4 Mbps
- Support STA, SoftAP, STA + SoftAP, and sniffer modes
- 32-bit RISC-V CPU with FPU and DSP, with a maximum dominant frequency of 320M 4MB pSRAM,532KB SRAM,128KB ROM,4Kb eFuse
- Supports DVP, MJPEG, Display, Audio Codec, USB2.0, SDU, Ethernet (EMAC), SD/MMC(SDH), SPI, UART, I2C, I2S, PWM, GPDAC, GPADC, ACOMP, GPIO, etc. Support Camera Sensor DVP interface
specification-
| Model | Ai-M61-32S-Kit |
|---|---|
| Storage Temperature (C) | -40~125 |
| I/O | 26 |
| UART Rate | Default 115200 bps |
| Operating Temperature (°C) | -40 ~ 85 |
| Length (mm): | 60 |
| Width (mm): | 26 |
| Height (mm): | 12 |
| Shipping Weight | 0.009 kg |
| Shipping Dimensions | 11 × 7 × 2 cm |
Package Includes:
1 x Ai Thinker Ai-M61-32S-Kit
