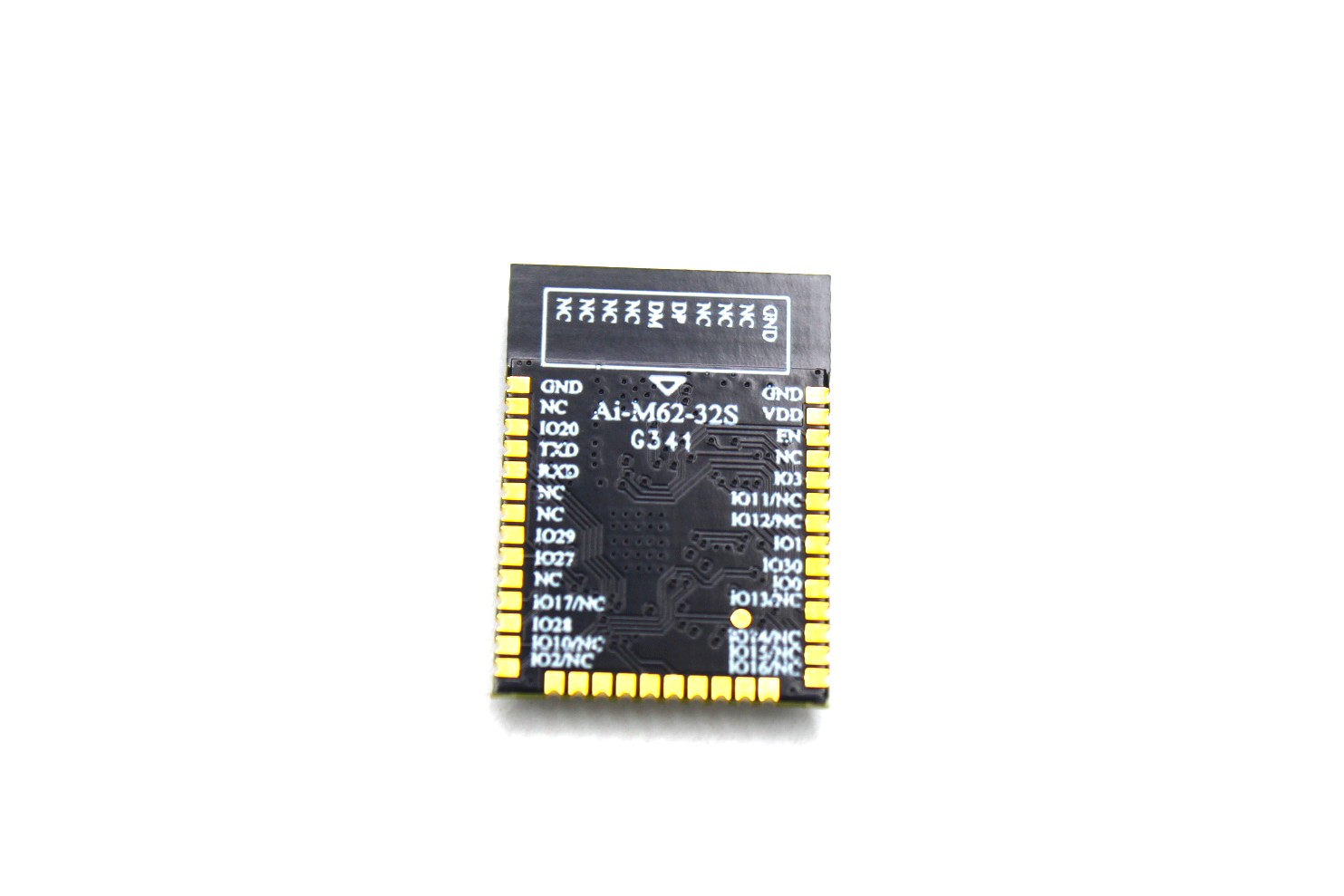

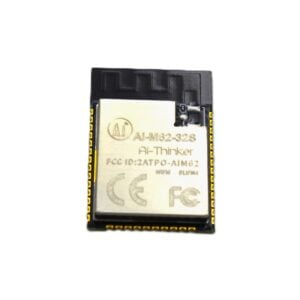

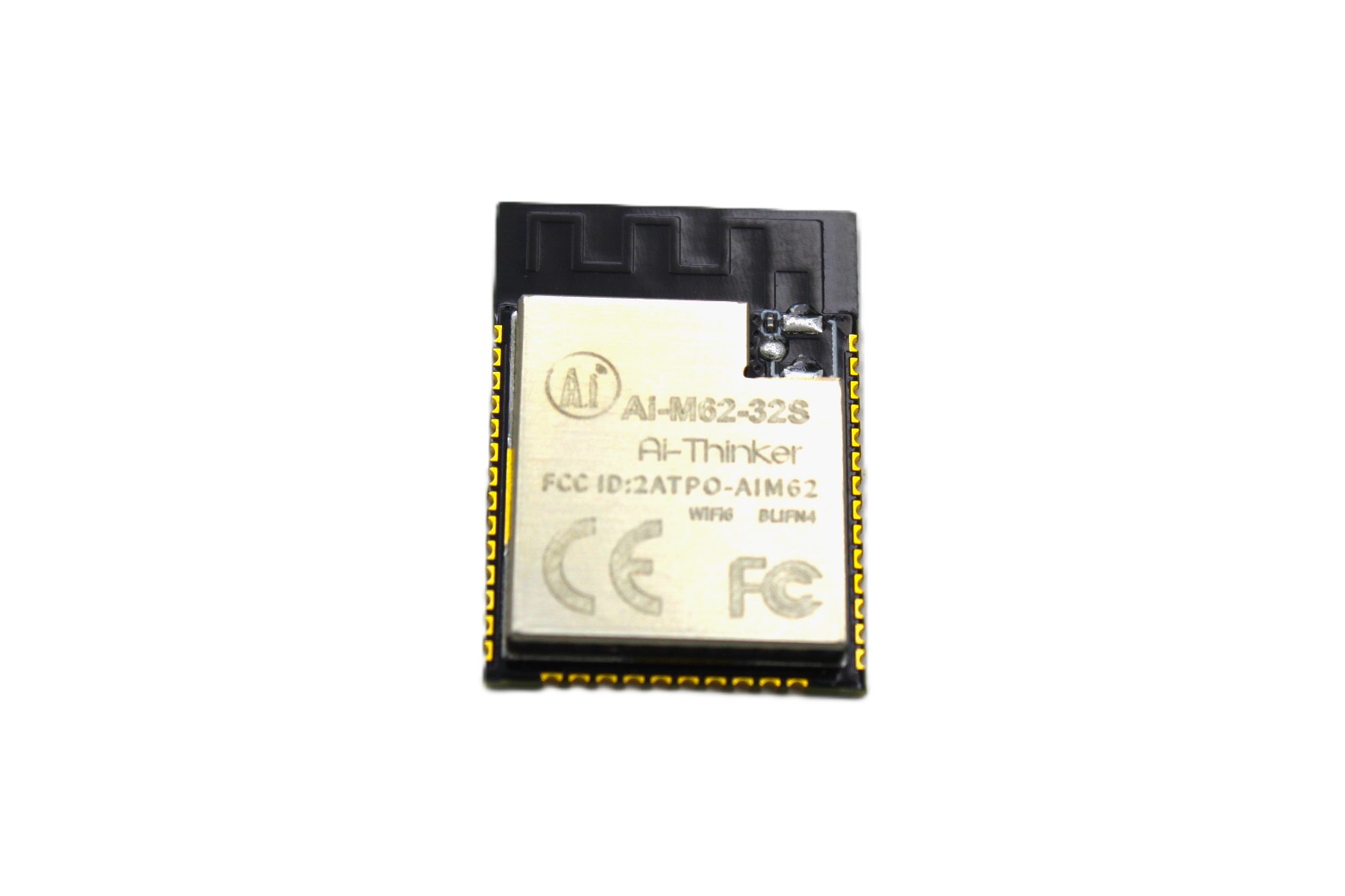

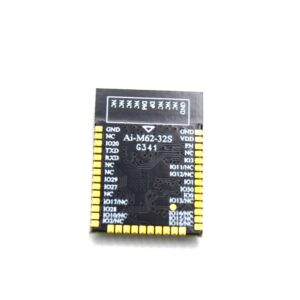

Ai-Thinker Ai-M62-32S Wi-Fi BLE Module

Description:

The Ai-M62-32S is a Wi-Fi 6 + BLE5.3 module created by Ai-Thinker, featuring a BL616 chip as its core processor. It supports Wi-Fi 802.11b/g/n/ax, BLE, and Thread protocols. The BL616 system boasts a low-power 32-bit RISC-V CPU with a floating-point unit, DSP unit, cache, and memory, reaching a peak frequency of 320M. The Ai-M62-32S module offers a wealth of peripheral interfaces, such as Audio Codec, USB2.0, SDU, SD/MMC(SDH), SPI, UART, I2C, I2S, PWM, GPDAC, GPDC, ACOMP, and GPIO. Its versatile application range includes audio and video multimedia, IoT, mobile and wearable devices, and smart homes. Additionally, the Ai-M62-32S module’s Security Engine supports AES/SHA/PKA/TRNG, image encryption, signature boot, and caters to diverse security needs in IoT applications.

Specifications:

• Model: Ai-M62-32S
• Antenna: Onboard antenna/IPEX seat
• Frequency: 2400~2483.5MHz
• Operating Temperature: -40 ℃ ~ 85 ℃
• Storage Temperature: -40℃ ~ 125℃, < 90%RH
• Power Supply: The power supply voltage is 2.97V ~ 3.6V, and the power supply current is≥ 500mA.
• Interface: Audio Codec, USB2.0, SDU, SD/MMC(SDH), SPI, UART, I2C, I2S, PWM, GPDAC, GPDC, ACOMP, GPIO, etc.
• IO: 18
• UART: rate Default 115200 bps
• Security: WPS/WEP/WPA/WPA2/WPA3
• Flash: Default 4MByte, Support expansion

Features:

• The package is DIP-38
• Support 2.4GHz frequency
• Support IEEE 802.11 b/g/n/ax
• Support Thread
• Support Wi-Fi/BLE/Thread coexistence
• Support BLE5.3

Package Included:

1 x Ai-Thinker Ai-M62-32S Wi-Fi BLE Module
