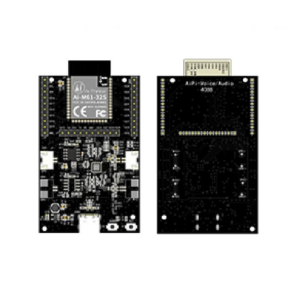

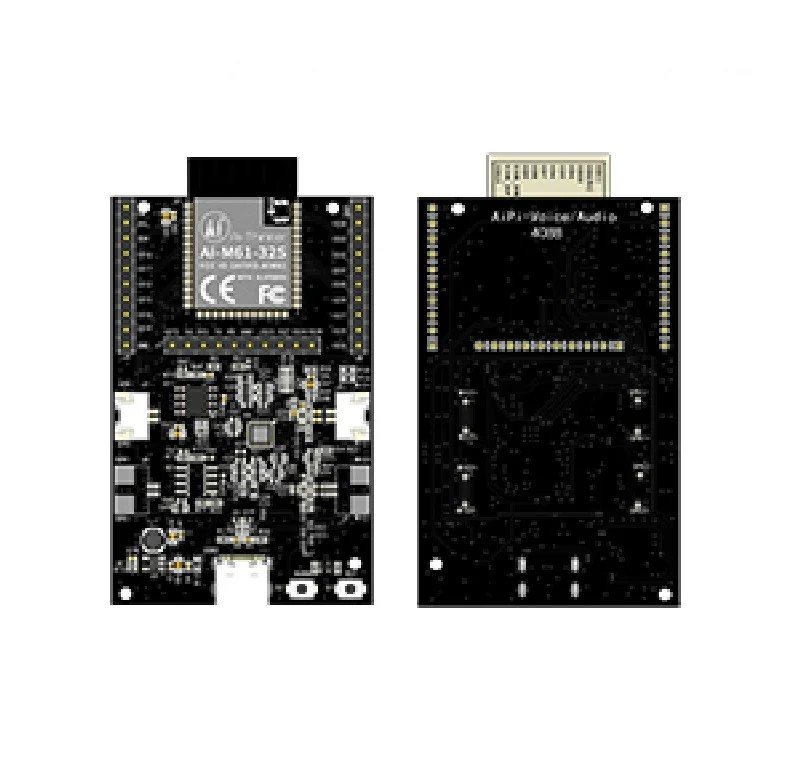

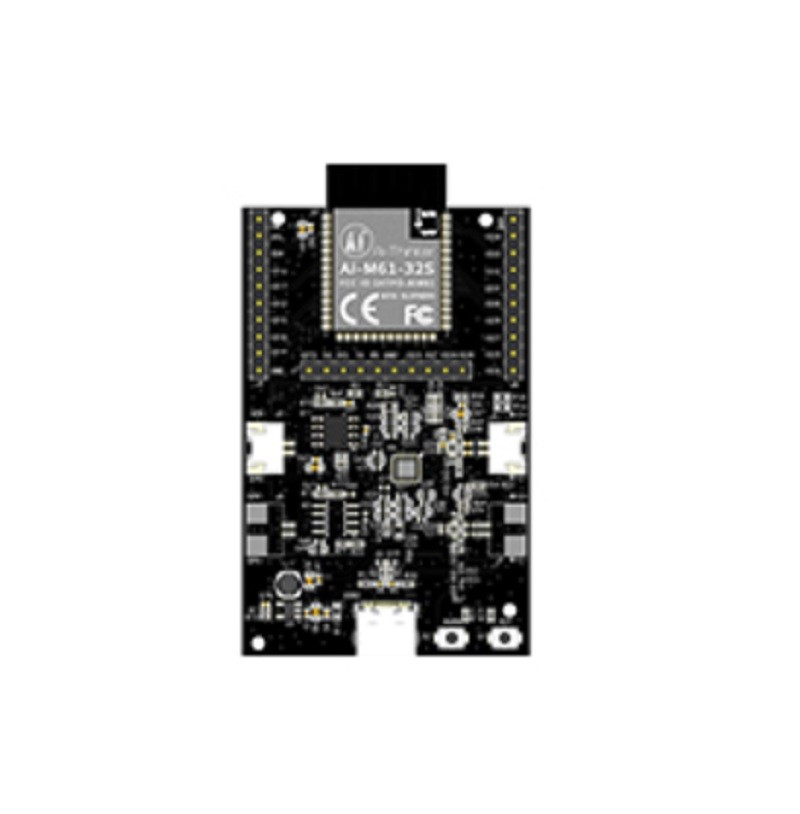

Ai Thinker AiPi-VOICE

The AiPi-Voice is a development board created by the Ai-Thinker open-source team, designed for the Ai-M61-32S module that supports WiFi6 and BLE 5.3. This module boasts a wide array of peripheral interfaces, including DVP, MJPEG, Display, Audio Codec, USB2.0, SDU, Ethernet (EMAC), SD/MMC (SDH), SPI, UART, I2C, I2S, PWM, GPDAC, GPADC, ACOMP, and GPIO. It facilitates voice output processing with an integrated voice chip, capable of recording and playback via an audio codec, and allows for sound control through an external display screen.

Specifications and Features:

1. Using CodeC chip inside the chip
2. Single output (Input not supported)
3. Support 8~48KHz dual-channel audio
4. Support 16 to 32-bit depth audio
5. Default dual-channel 2W 80 speaker
6. Type-C USB 5V power supply
7. Support WiFi 6, Support BLE 5.3
8. Support WiFi/BLE/Thread coexist
9. Integrated Windows, Linux development environment
10. Code open source, arbitrary development
11. Length: 68mm
12. Width: 43mm
13. Height: 13mm

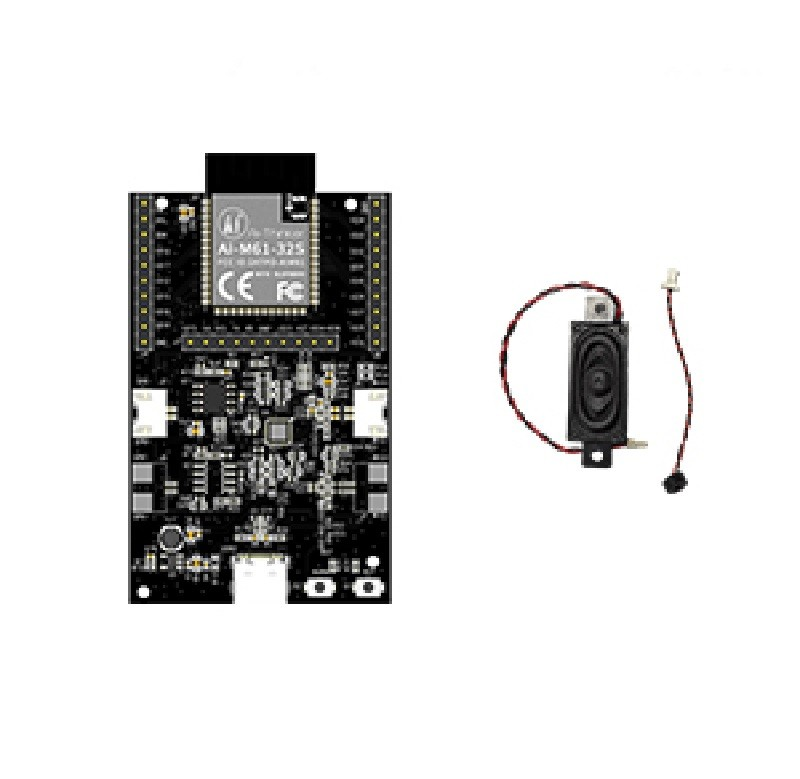

Package Includes:

1 x Ai Thinker AiPi-VOICE

1 x mic

1 x speaker
