AI-Thinker RD-Kit Radar

Description:-

The Rd-Kit is a radar test board developed by Shenzhen Ai-Thinker Technology Co., Ltd. Its core processor, the PHY6252(SSOP24) chip, is a highly integrated and low-power Bluetooth system on a chip (SoC).

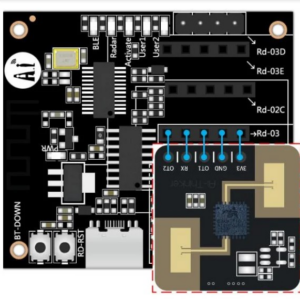

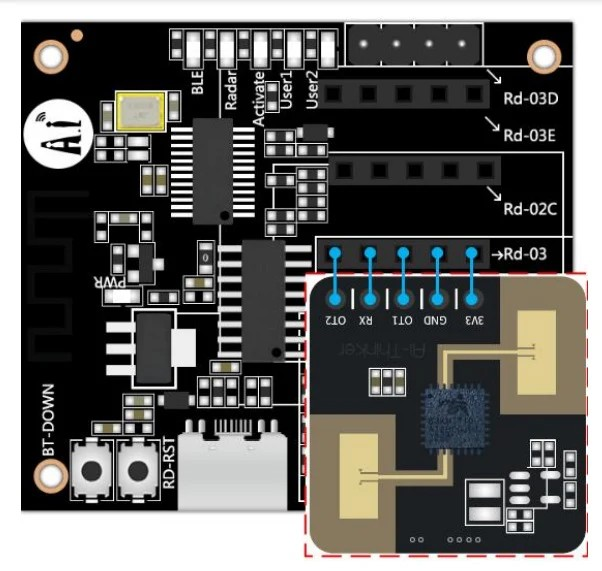

This board is compatible with six radar models: Rd-02B, Rd-02C, Rd-03, Rd-03D, Rd-03E, and Rd-04, all tailored for radar debugging scenarios.

The PHY6252(SSOP24) chip boasts industry-leading low power consumption and RF performance, supporting Bluetooth BLE 5.2. It includes 64 KB SRAM, 256 KB flash, 96 KB ROM, and a 256-bit efuse.

It supports various low-power modes to satisfy the power needs of different applications. The RF output power is adjustable, allowing an optimal balance between communication distance, rate, and power consumption.

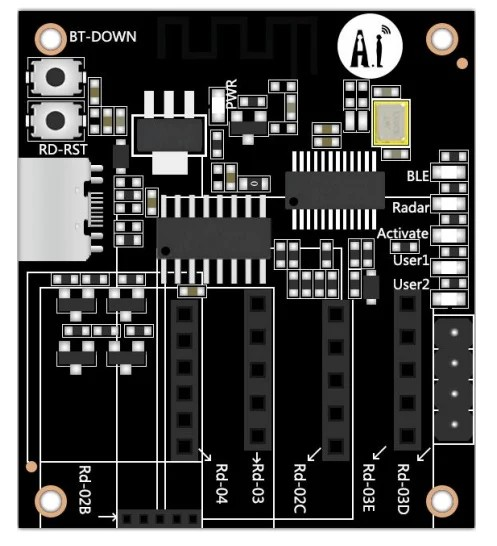

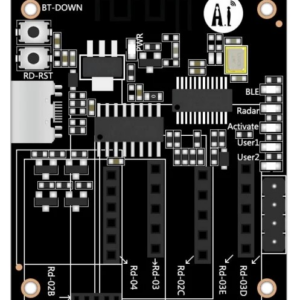

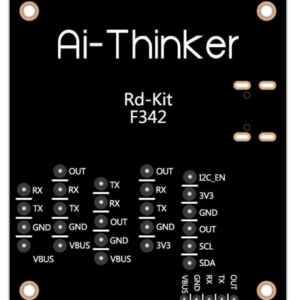

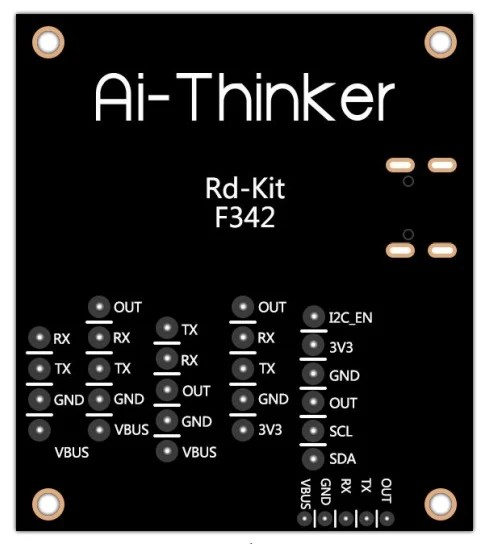

The Rd-Kit features five LED lights, two buttons, six radar connectors, and a Type-C interface. It comes with factory firmware and an app developed by Ai-Thinker, enabling data detection and parameter adjustments for the six radars.

Design elements include a Bluetooth chip reset button and a radar serial port power-off reset button.

Features:

• It supports six kinds of radars: Rd-02B, Rd-02C, Rd-03, Rd-03D, Rd-03E and Rd-04
• Equipped with Ai-Thinker APP for data detection and parameter adjustment
• Support BLE5.2, rate support: 125Kbps, 500Kbps, 1Mbps, 2Mbps
• With 64 KB SRAM, 256KB flash,96 KB ROM and 256bit efuse
• Support serial local upgrade and remote firmware upgrade (FOTA)
• There are six status indicators, one red and five blue, corresponding to different status of Rd-Kit
• It supports secondary development and integrates Windows and Linux development environments

Specifications:-

• Model: Rd-Kit

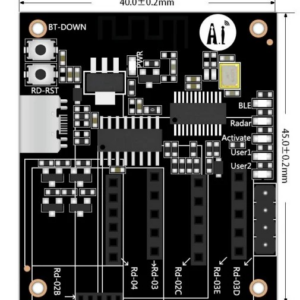

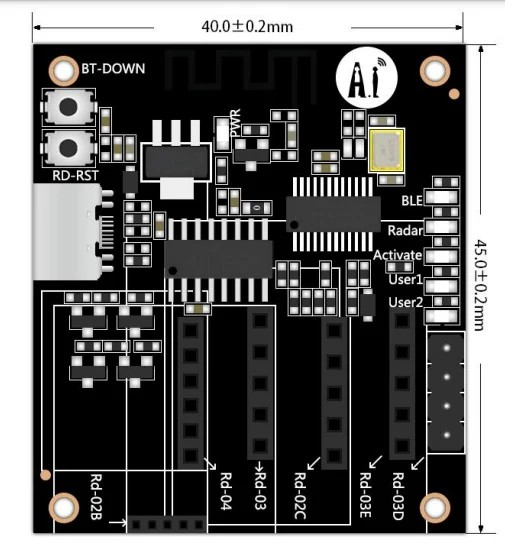

• Size: 40*45(±0.2)mm
• Antenna: On-board antenna
• Frequency range: 2400~2483.5MHz
• Operation temperature: -20℃~70℃
• Storage environment: -40℃~125℃,<90%RH
• Power supply: 5V，supply current≥500mA
• Power supply: Type-C female seat
• Support radar interface: Rd-02B, Rd-02C,Rd-03, Rd-03D, Rd-03E & Rd-04
• Indicator light: 6PCS（1 red 5blue）
• UART rate Default: 115200 bps
• Security: AES-128
• Flash: 256KB

Package Includes: –

1x RD-Kit
