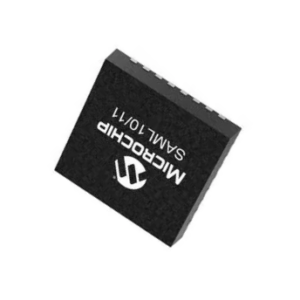

ATSAML10E16A-AU Arm Cortex-M23 MCU IC
The inaugural and most power-efficient Arm Cortex-M23 MCU in the industry consumes under 25uA/MHz in active mode and below 100nA in sleep mode. Boasting an enhanced peripheral touch controller, advanced analog capabilities, ISO7816 smart card interface, event system, and Sleep Walking peripherals, it sets a new standard for versatility and efficiency. The SAM L10 model has earned an EEMBC Certified ULPMark score of 405, demonstrating its exceptional performance in ultra-low-power scenarios.
Features:
- Driven shield plus for moisture tolerance and noise immunity
- Parallel acquisition through polarity control
- Supports wake-up on touch from standby sleep mode.
- Advanced analogue
- Serial communication interfaces (SERCOM)
- Atmel Studio 7 IDE
- Atmel START Software Framework
- Two-pin Serial Wire Debug (SWD) programming and debugging interface.
Specifications:
- ARM Cortex-M23
- 32MHz (2.62 CoreMark/MHz and up to 31 DMIPS)
- Single-cycle hardware multiplier
- Hardware divider
- Nested Vector Interrupt Controller (NVIC)
- Memory protection unit (MPU)
- 64KB Flash
- 16KB SRAM
- 2KB data flash section for non-volatile data storage
- 256bytes TrustRAM with physical protection features
Package Includes:
1 x ATSAML10E16A-AU Arm Cortex-M23 MCU IC
