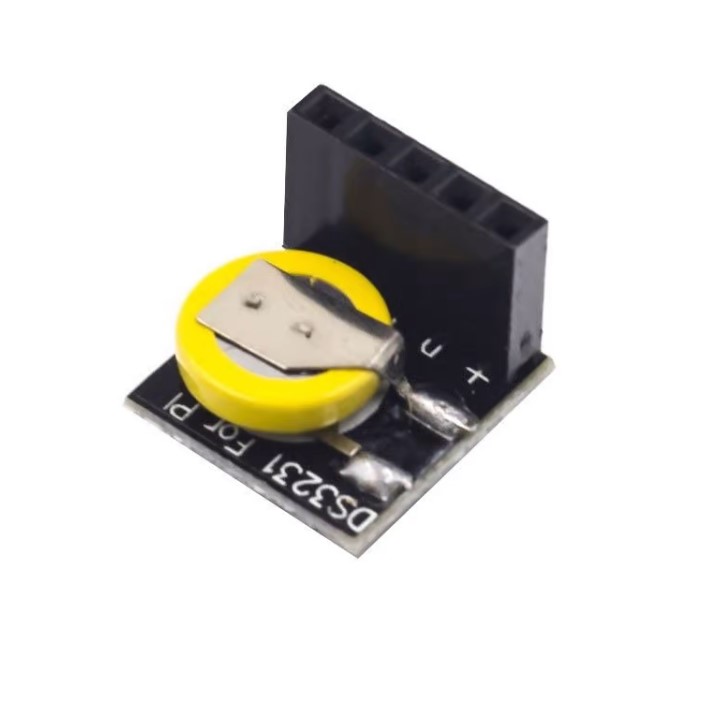

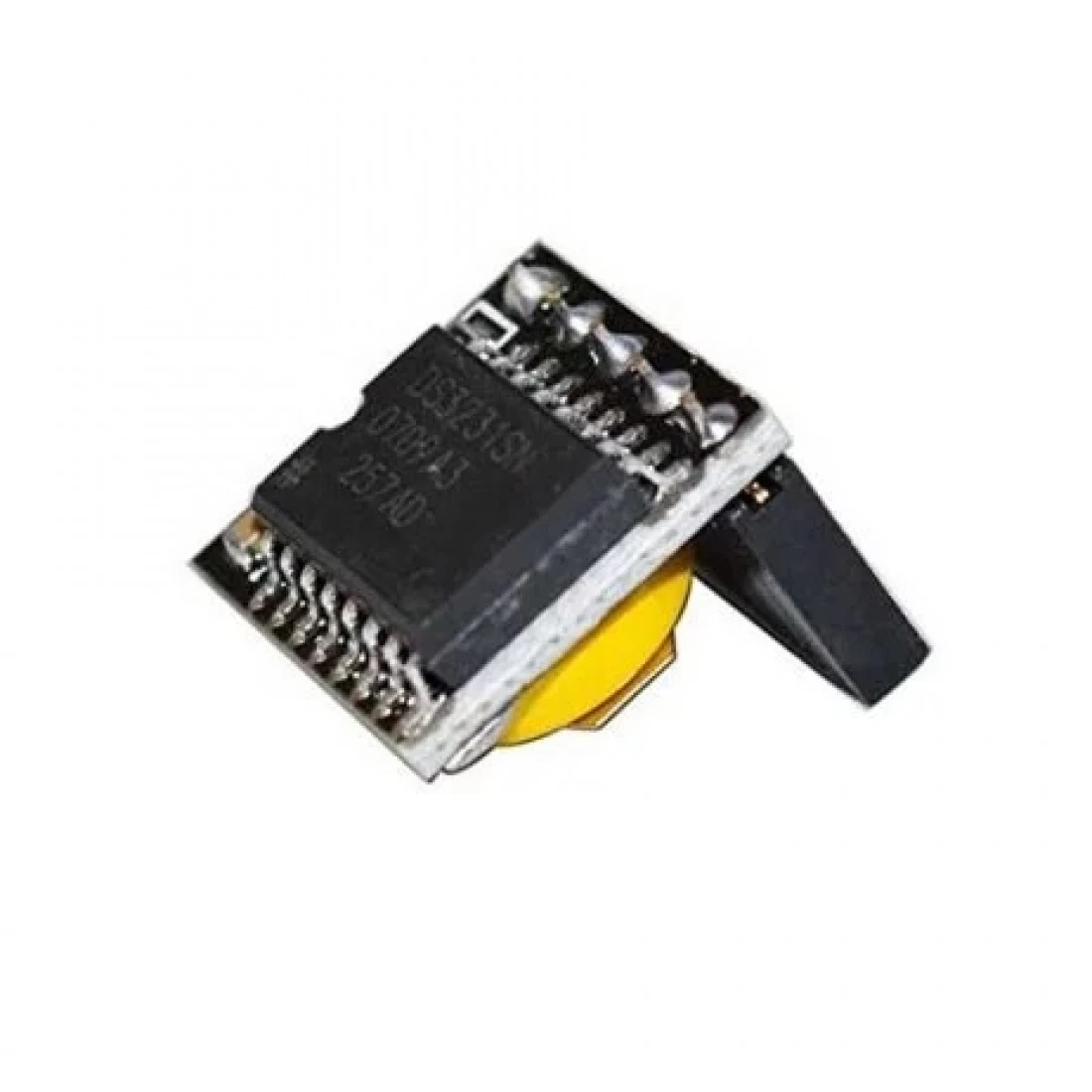

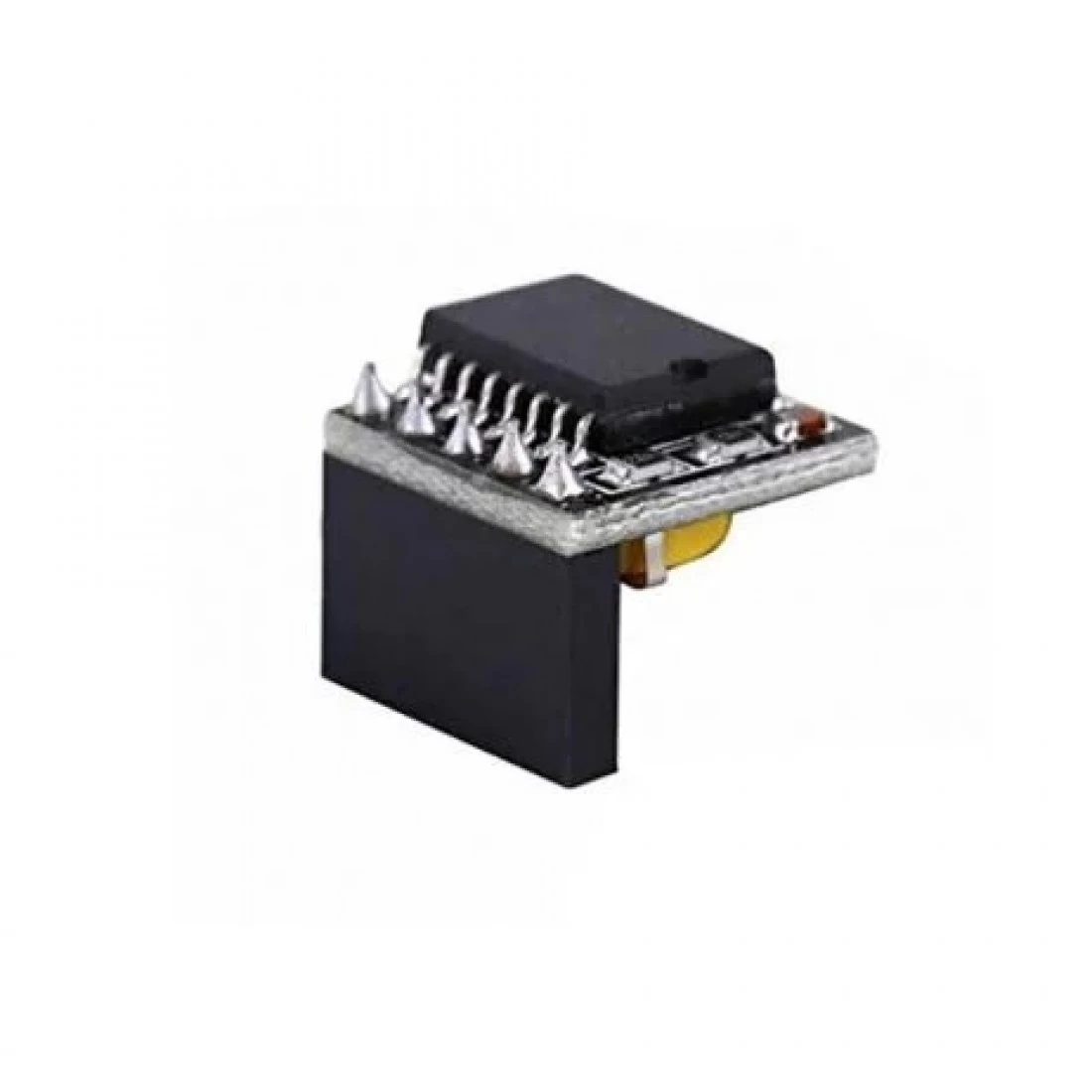

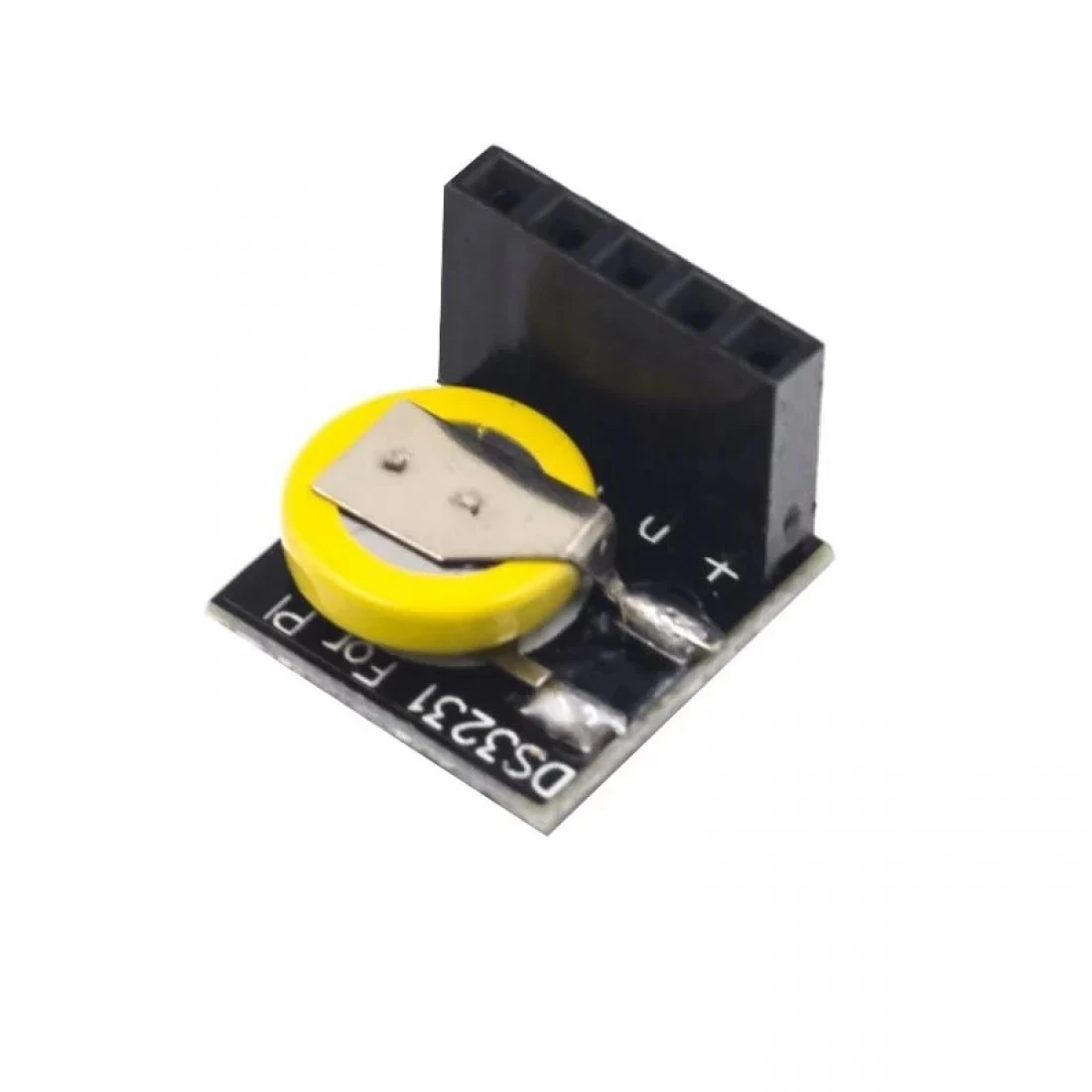

DS3231 Real Time Clock Module 3.3V 5V Precise
The DS3231 Mini RTC is a mini real-time clock module designed for Raspberry Pi, but it can also be used with Arduino. The DS3231 RTC IC can self-adjust to 3.3V and 5V. It provides battery backup for continuous timing and low-power consumption. It has complete clock functions, including seconds, minutes, hours, day, date, month and year timing, and it is valid until 2100.
It also has two calendar alarms, 1Hz and 32.768kHz output, reset output and input buttons debounced, and high-speed (400KHz) I2C serial bus. Many RTC modules are designed to operate at 5V, but the Raspberry Pi operates at 3.3V. That is why this module is handy, as it operates at 3.3V, making it perfect for adding an RTC to your Raspberry Pi.
Specifications
Supply voltage(V) | +2.3 to +5.5 |
operating temperature range | -40°C to +85°C |
Number of calendar alarm | 2 |
Output Frequency | 1Hz and 32.768kHz |
PCB Dimension( mm) | 14x14x12 |
Weight(g) | 4 |
Shipment Weight | 0.005 kg |
Features
- Supported Raspberry Pi and Arduino Within -40°C to +85 ° C temperature range
- Timing accuracy is maintained at ± 5ppm (± 0.432 sec/day).
- operating temperature range:-40°C to +85°C
- Provide battery backup for continuous timing.
- Complete clock functions include seconds, minutes, hours, day, date, month and year timing, and provide valid to 2100.
- Two calendar alarm.
- 1Hz and 32.768kHz output.
- Size: 14x14x12 mm
Package Includes
1 x DS3231 Real Time Clock Module 3.3V 5V Precise
Reviews
There are no reviews yet.
