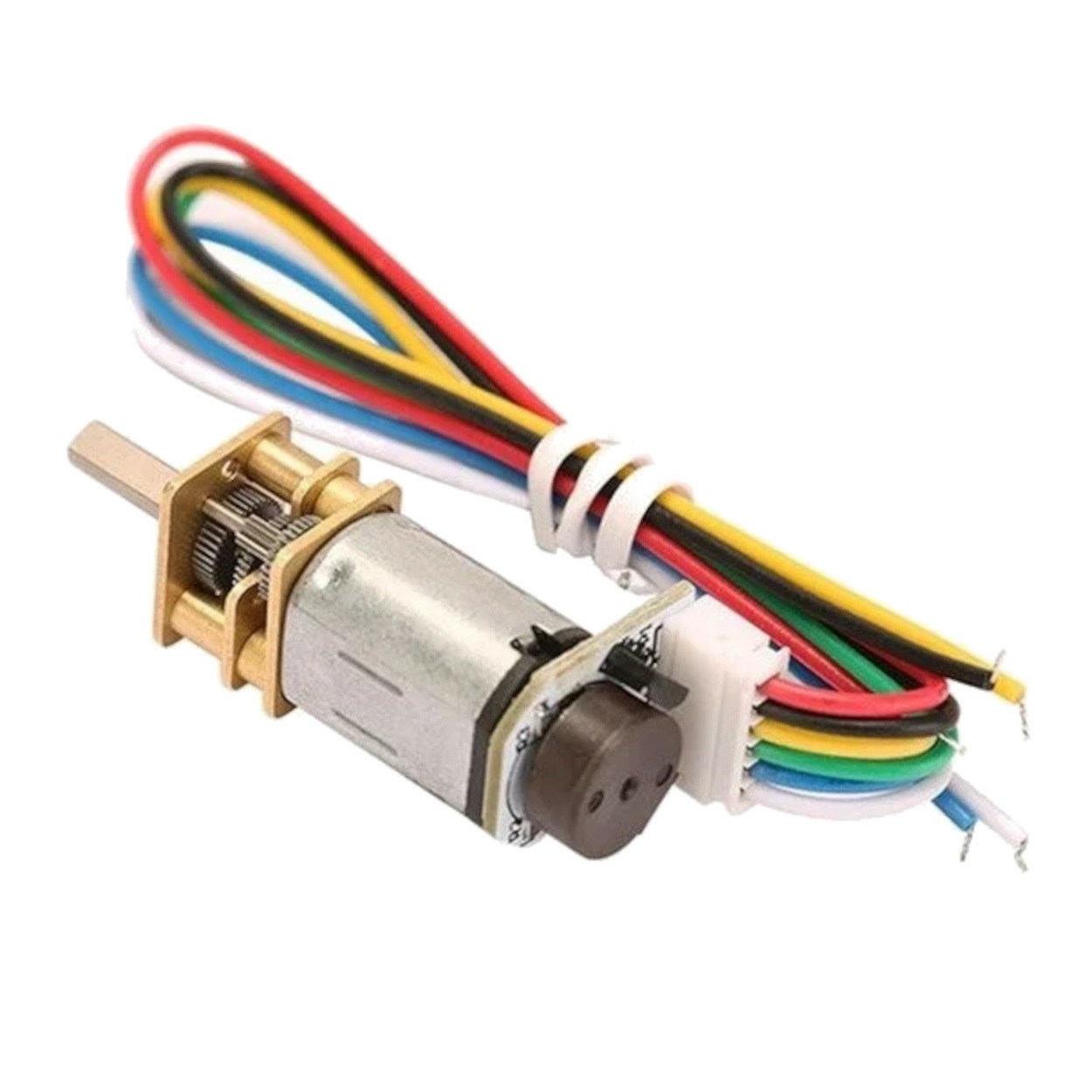

GA12-N20 12V 750RPM Micro DC Reducer Motor Encoder with Wire

GA12-N20 12V 750RPM Micro DC Reducer Motor Encoder

The N20 12V 750 RPM Metal Gear Micro DC Encoder Motor with Precious Metal Brush is a versatile and lightweight motor suitable for a wide range of industrial, home appliance, and hobby applications. Its all-metal gearbox assembly ensures exceptional torque for its compact size, offering superior durability and longevity, thanks to the use of precious metal brushes. Compared to similar motors with metal or plastic gears, the N20 motor boasts a significantly higher torque-to-size ratio, making it a standout choice for various projects. Whether for small Industrial IoT products like electric locks and webcam pan-tilt mechanisms or hobbyist projects such as robotic cars and electric boats, the N20 motor excels in delivering ample torque in limited space and weight constraints. Additionally, its encoder feature enables precise control over the motor’s position, enhancing its versatility and usability in a wide range of applications.

Motor Specifications:

• Model: GA12-N20-750
• Rated Voltage: 12V
• Revolving Speed: 750 RPM
• Rated Torque: 0.1 kg. cm
• Stall Torque: 2 kg. cm
• Rated Current: 40 mA
• Stall Current: 1 A
• Gear Material: Full Metal
• Shaft Size : 3 x 9mm(D*L)
• Shaft Type : D Type

Encoder Specifications:

• Encoder Type: Quad
• PPR:7
• CPR:7x 4=28
• CPR at output shaft:7000

Encoder Pinout details:

• M2 (Red) – MOTOR TERMINAL(Motor +)
• M1 (White) – MOTOR TERMINAL (Motor -)
• C2 (Yellow) – ENCODER OUTPUT (A)
• C1 (Green) – ENCODER OUTPUT (A)
• VCC (Black) – SUPPLY OF ENCODER Vcc(5 V)
• GND (Blue) – Gnd

Package Includes :

1 x GA12-N20 12V 750RPM Micro DC Reducer Motor Encoder with Wire
