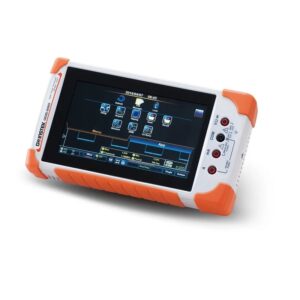

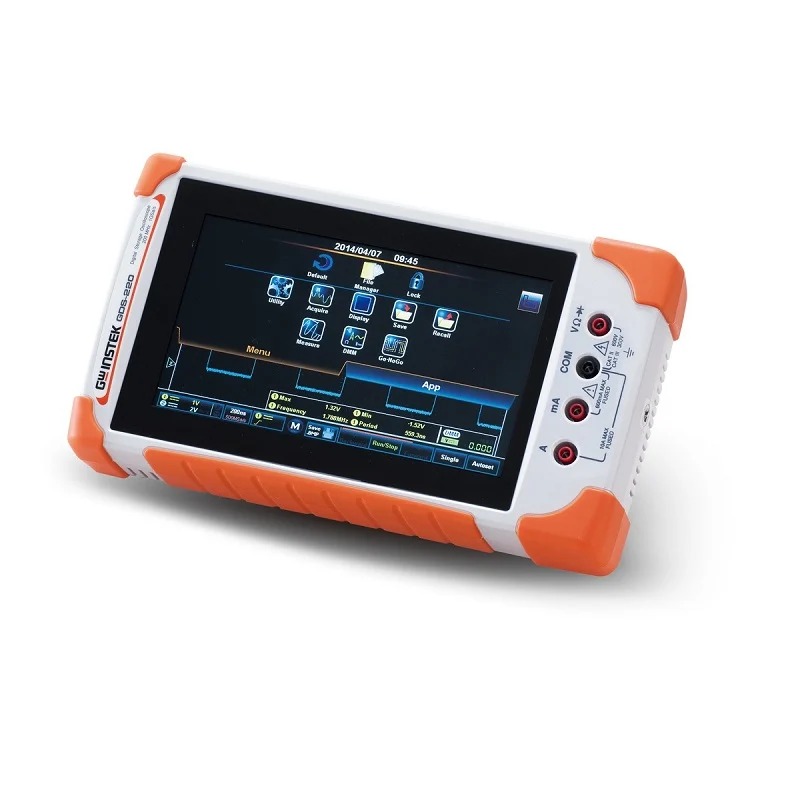

The GDS-220 from GW Instek is a GDS-200 series 2 channel digital storage oscilloscope with 200MHz bandwidth. This compact handheld device can be positioned in portrait and landscape display. The recharging battery design makes it easy to operate in laboratories, R&D, large electric system tests, power product tests, motor tests, solar power battery inspection, repair, and maintenance on field assignments.
Trend plot in a long period of time can also be drawn allowing effectively monitor standard electric parameters while measuring basic circuit signals. Oscilloscopes have built-in 30000 waveform records replay function which monitors circuits in a long period of time and records which can be replayed repeatedly. An optional differential probe of the oscilloscope can achieve equivalent isolation results for the measurement system and there is no grounding problem. It has a built-in engineering calculator, SMD resistance coding, color coding info & attenuator calculation applications.
Features:
- 7inch portable full touch panel capacitive LCD display, 480 x 800 pixels resolution
- Li- polymer 6100mA/hr, 7.4(built-in) battery
- Used as an USB storage device with 120MB internal flash disk

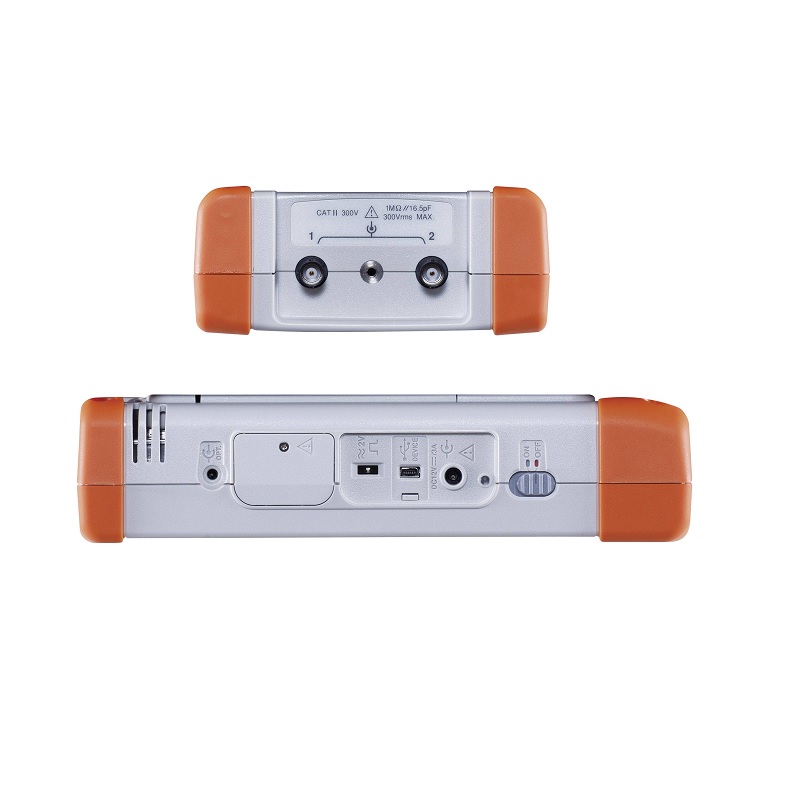

- Input impedance of 1Mohm ±2% (6.5pf approx.)
- Maximum input of CAT II 300VRMS, dimension of 240.2mm x 136mm x 59.7mm (W x H x D)
- Built-in 5000 counts DMM, GO/NOGO template editing
- Rise time less than 1.75ns
- Briefing material compilation, image storage and preview function
- Real time sample rate of 1GSa/s, memory depth of 1Mpoints per channel
- Operating temperature range from -50°C to +1000°C
Package Includes:
1 x GDS-220 oscilloscope
1 x Quick start Gauide
1 x User manual CD
1 x Power cord
1 x GSC-010 soft carrying case
1 x GSC-011 soft carrying bag
1 x GAP-001 AC to DC adapter
2 x GWS-001 wrist strap, GTL-207 multimeter test lead
1 x GTP-250B-2 250MHz probe.
