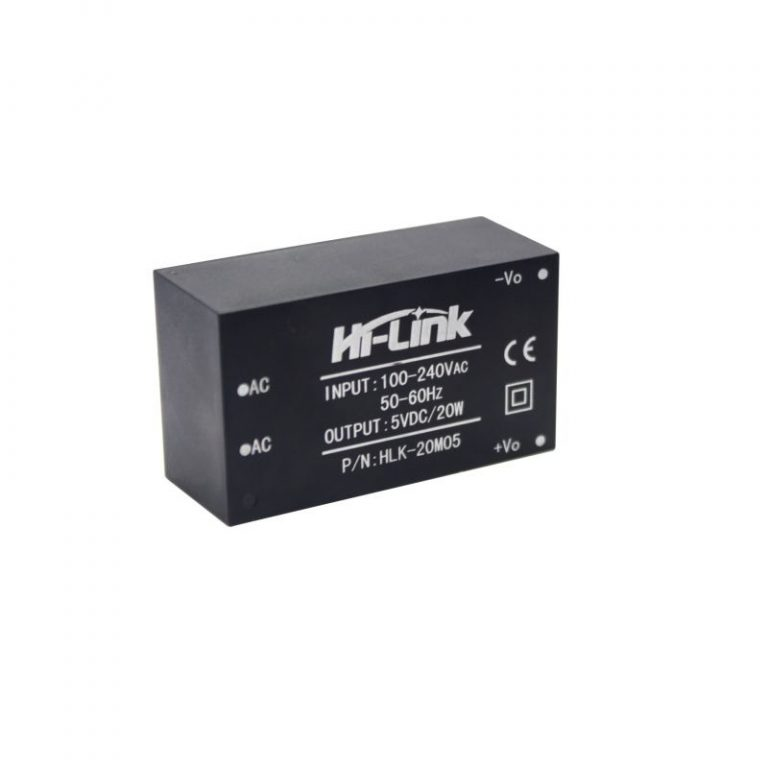

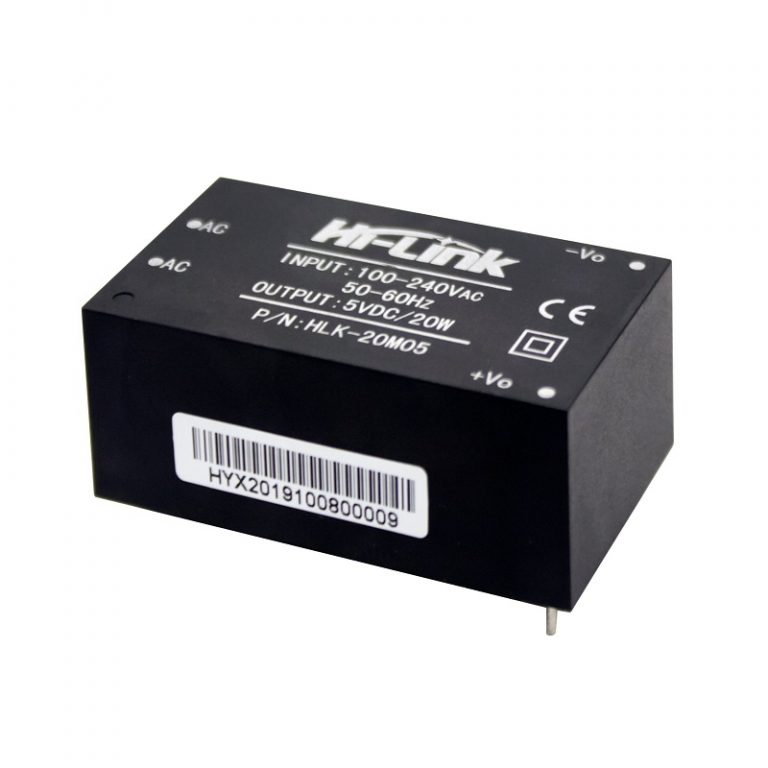

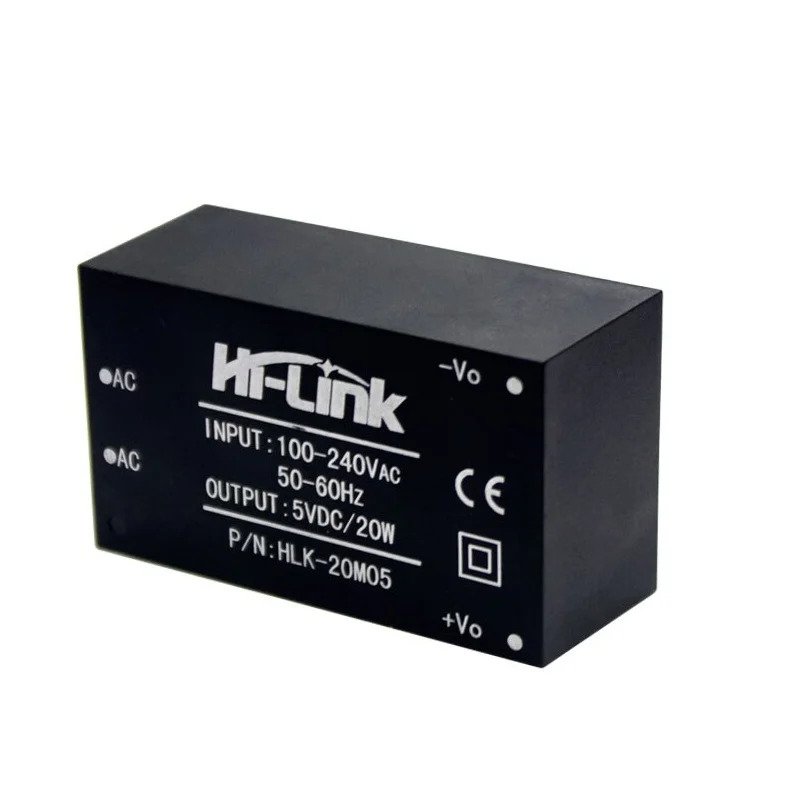

Hi Link HLK 20M05 5V/20W Switch Power Supply Module
The HLK-20M05 5V/20W Switch Power Supply Module is an isolated switching step-down power supply module that can be mounted on a PCB and enclosed in plastic. It converts 100V AC – 240V AC to 5V DC and has a power rating of 20 Watt. This is ideal for small projects that require a 5 volt supply from the mains. The module has many benefits, such as low temperature rise, low power consumption, high efficiency, high reliability, and high-security isolation.
The 20W ultra-small series power supply module is a compact and efficient power module designed by Hi-Link for customers. It has a global input range and low temperature rise. It is highly efficient, reliable, and consumes low power. It is suitable for various applications in smart homes, automation control, and other industries.
This Power Supply Module has a switching voltage source that can handle voltage grid fluctuations. It can be easily mounted on the PCB and used to power portable devices. It is widely used in smart homes, automation and control, communication equipment, instrumentation, and other industries.

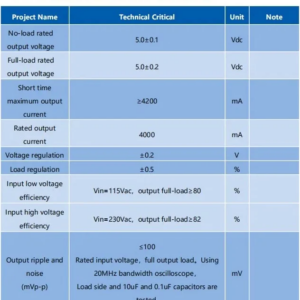

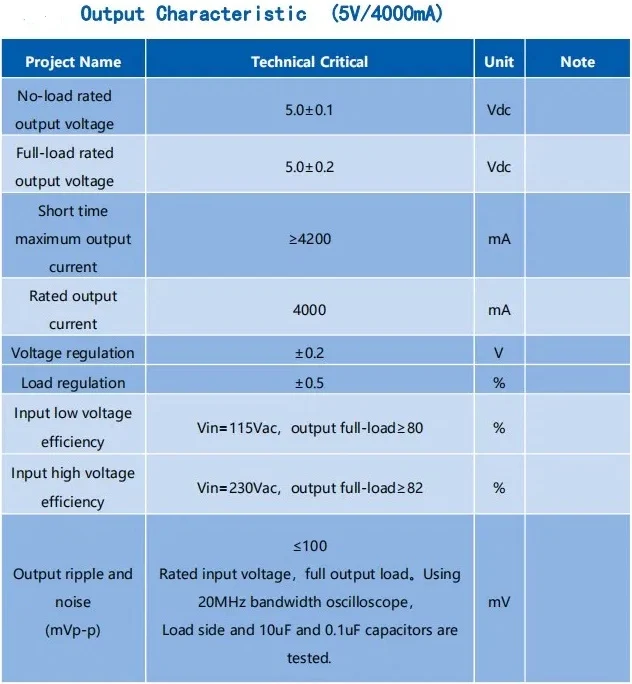

Specifications
| Model Number | HLK-20M05. |
| Output Power(W) | 20 |
| Output Type | Single |
| Input Voltage(V) | 100-240 |
| Output Voltage(V) | 5 |
| Output Current(mA) | 4000 |
| Working Temp(C) | -25 – +60 |
| Working Humidity | 5-95 |
Features
- Meet UL, CE requirements,
- Ultra-thin, ultra-small
- All voltage input (AC: 100 ~ 240V)
- Low ripple and low noise
- Output overload and short circuit protection
- High efficiency, high power density
- The product is designed to meet the requirements of the EMC and Safety Test
- Low power consumption, environmental protection, no-load loss <0.1W
Environmental conditions:
- Technical indicators: Single bit
- Working temperature: – 20-60 +degree
- Storage temperature: + 80-40 -degree
- Relative humidity: 5-95%
- The cooling way: Natural cooling
- The atmospheric pressure: 80-106Kpa
- The altitude: 2000M or less.
Package Includes
- 1 x HLK-20M05 5V/20W Switch Power Supply Module
