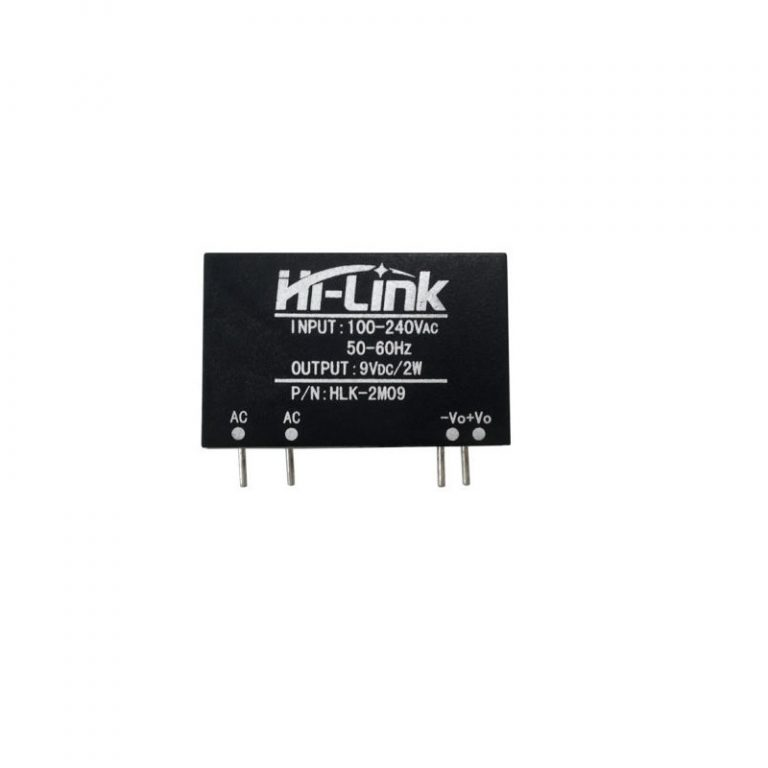

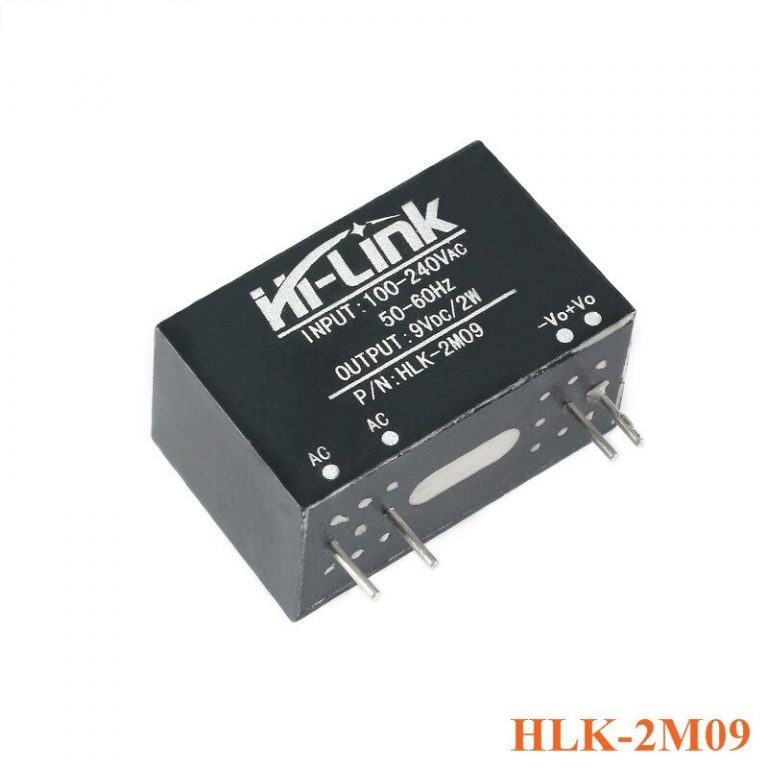

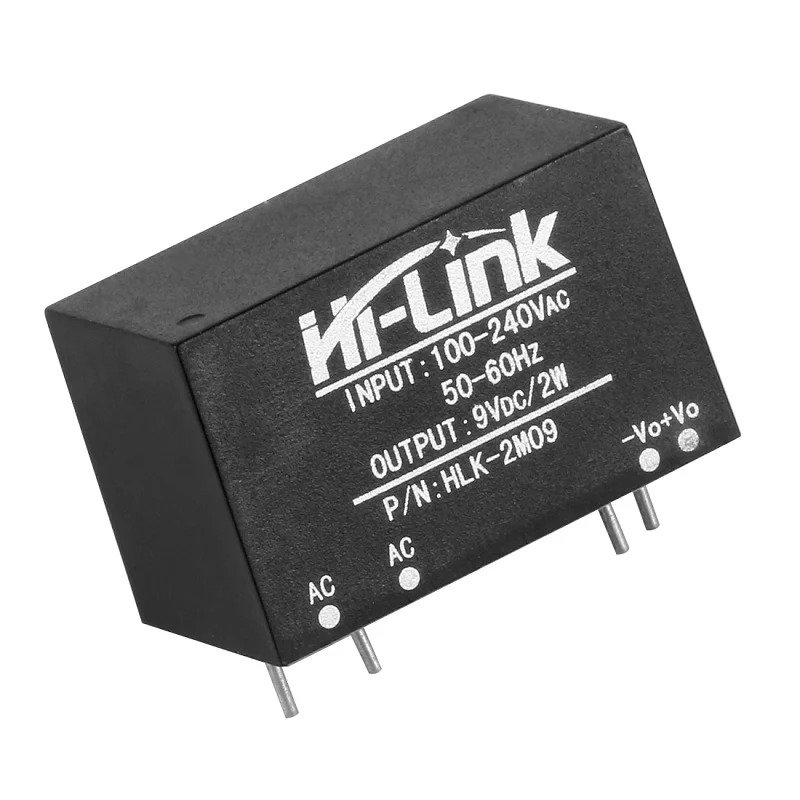

Hi Link HLK 2M09 9V/2W Switch Power Supply Module
The HLK-2M09 9V/2W Switch Power Supply Module is an isolated step-down module housed in a plastic PCB enclosure. It efficiently converts 100V AC to 240V AC into a stable 9V DC output with a power rating of 2 Watts, making it ideal for small projects that require a 9-volt supply from the mains. This module offers numerous advantages, including low temperature rise, minimal power consumption, high efficiency, reliability, and robust isolation for safety.
Hi-Link’s 2W ultra-small series power supply module is designed for high efficiency to meet customer demands. It features a wide input range, reduced power consumption, low heat generation, and exceptional reliability. Common applications include smart home technologies and automation control systems.
As a switching power supply, this module maintains a consistent voltage output despite input fluctuations. It easily integrates with PCBs to power portable devices and is utilized across various sectors, including smart homes, automation, communication equipment, and instrumentation.
Specifications
| Model Number | HLK-2M09 |
| Output Power(W) | 2 |
| Output Type | Single |
| Input Voltage(V) | 100-240 |
| Output Voltage(V) | 9 |
| Output Current(mA) | 230 |
| Working Temp(C) | -25 – +60 |
| Working Humidity | 5-95 |
Features
- Meet UL, CE requirements,
- Ultra-thin, ultra-small
- All voltage input (AC: 100 ~ 240V)
- Low ripple and low noise
- Output overload and short circuit protection
- High efficiency, high power density
- The product is designed to meet the requirements of the EMC and Safety Test
- Low power consumption, environmental protection, no-load loss <0.1W
Environmental conditions:
- Technical indicators: Single bit
- Working temperature: – 20-60 +degree
- Storage temperature: + 80-40 -degree
- Relative humidity: 5-95%
- The cooling way: Natural cooling
- The atmospheric pressure: 80-106Kpa
- The altitude: 2000M or less.
Package Includes
- 1 x HLK-2M09 9V/2W Switch Power Supply Module
HLK-2M09 Datasheet
