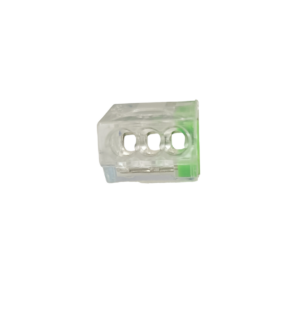

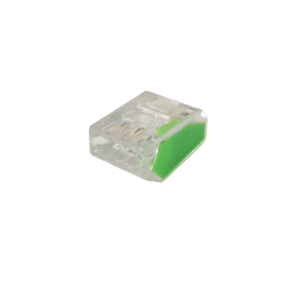

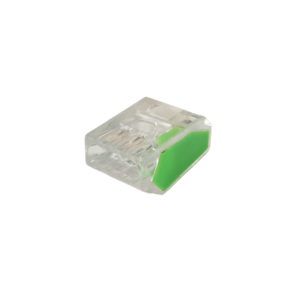

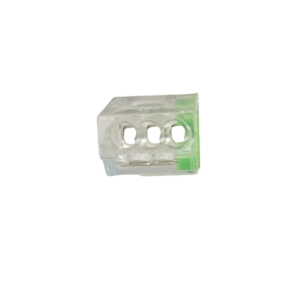

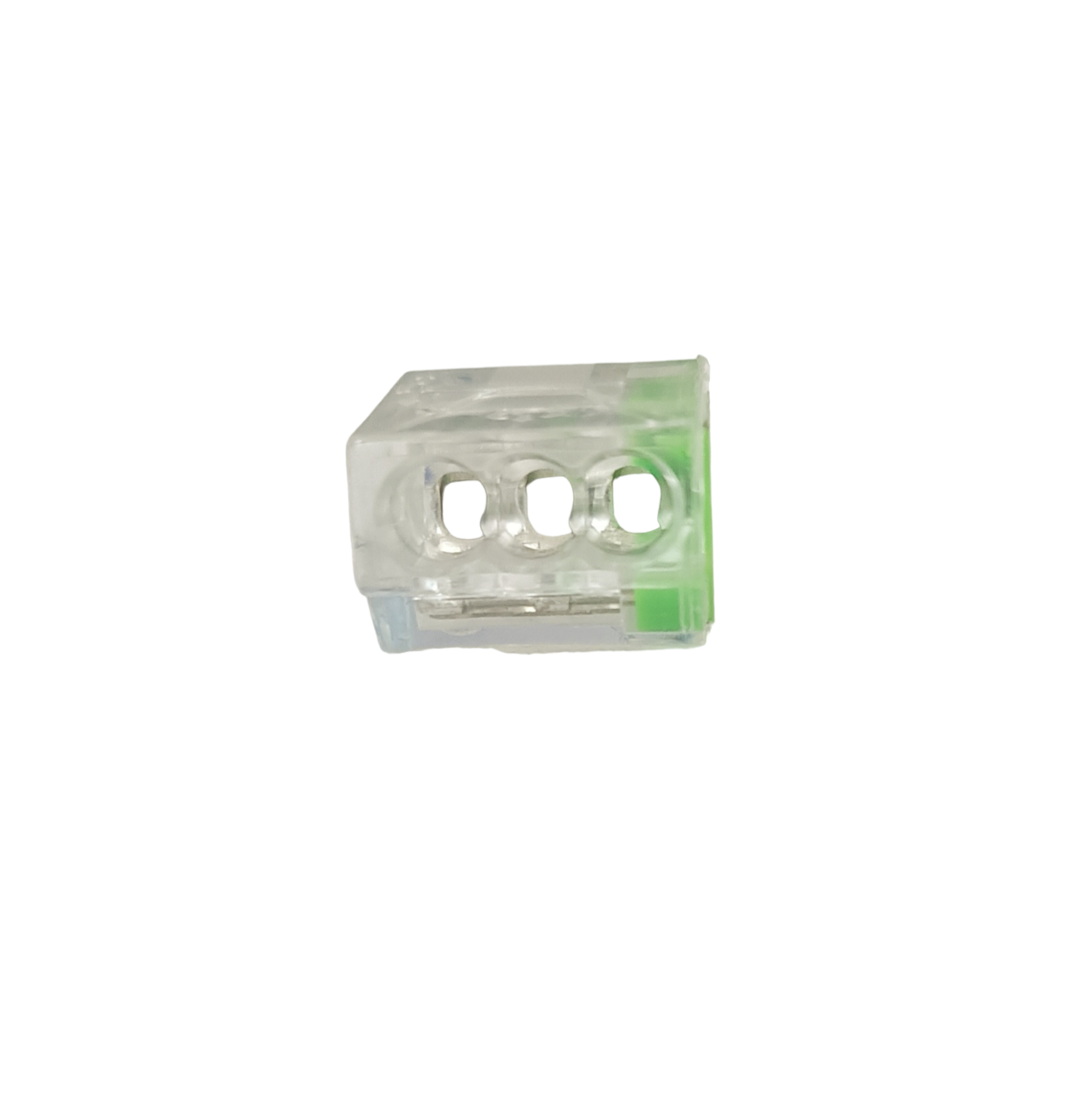

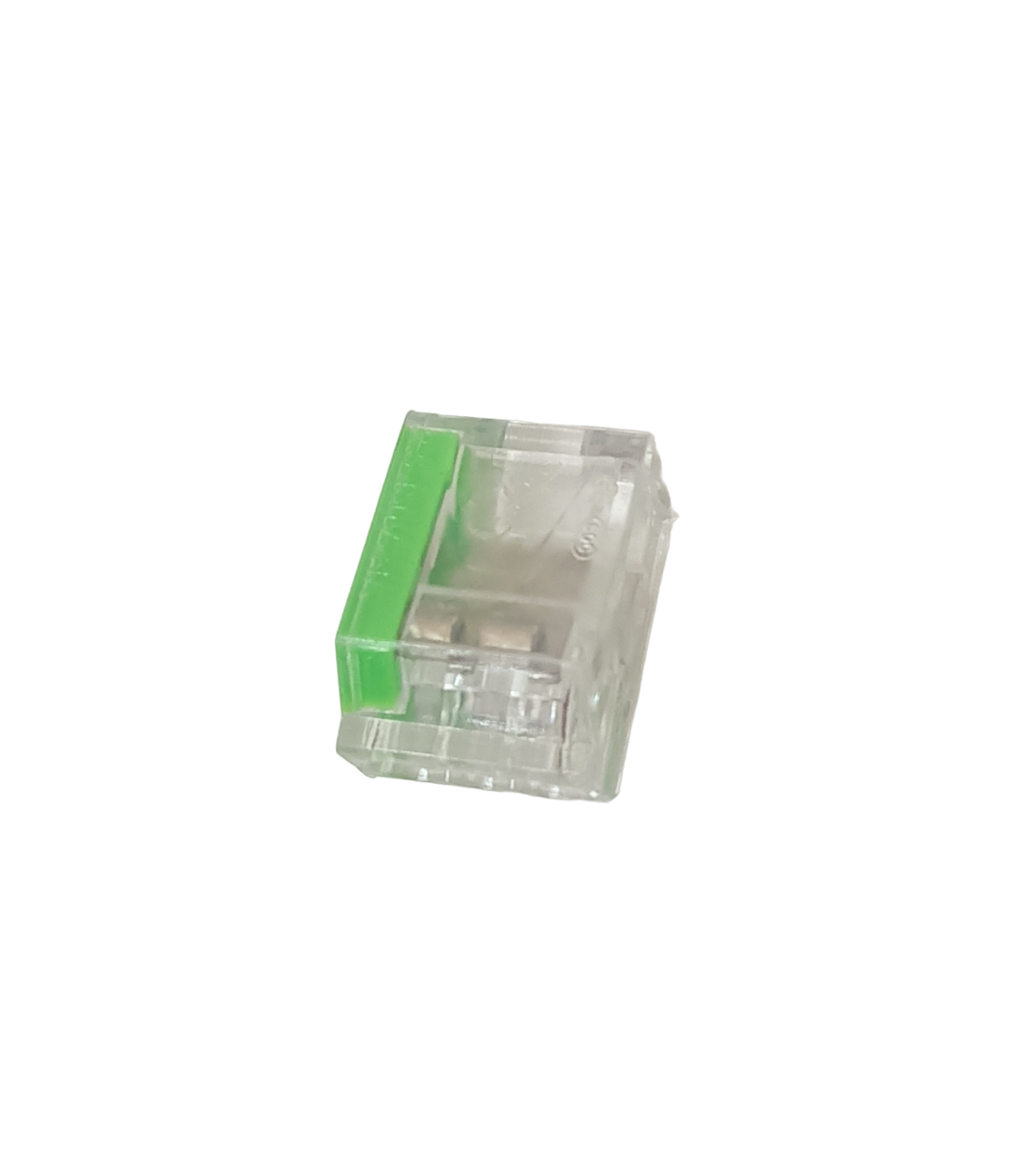

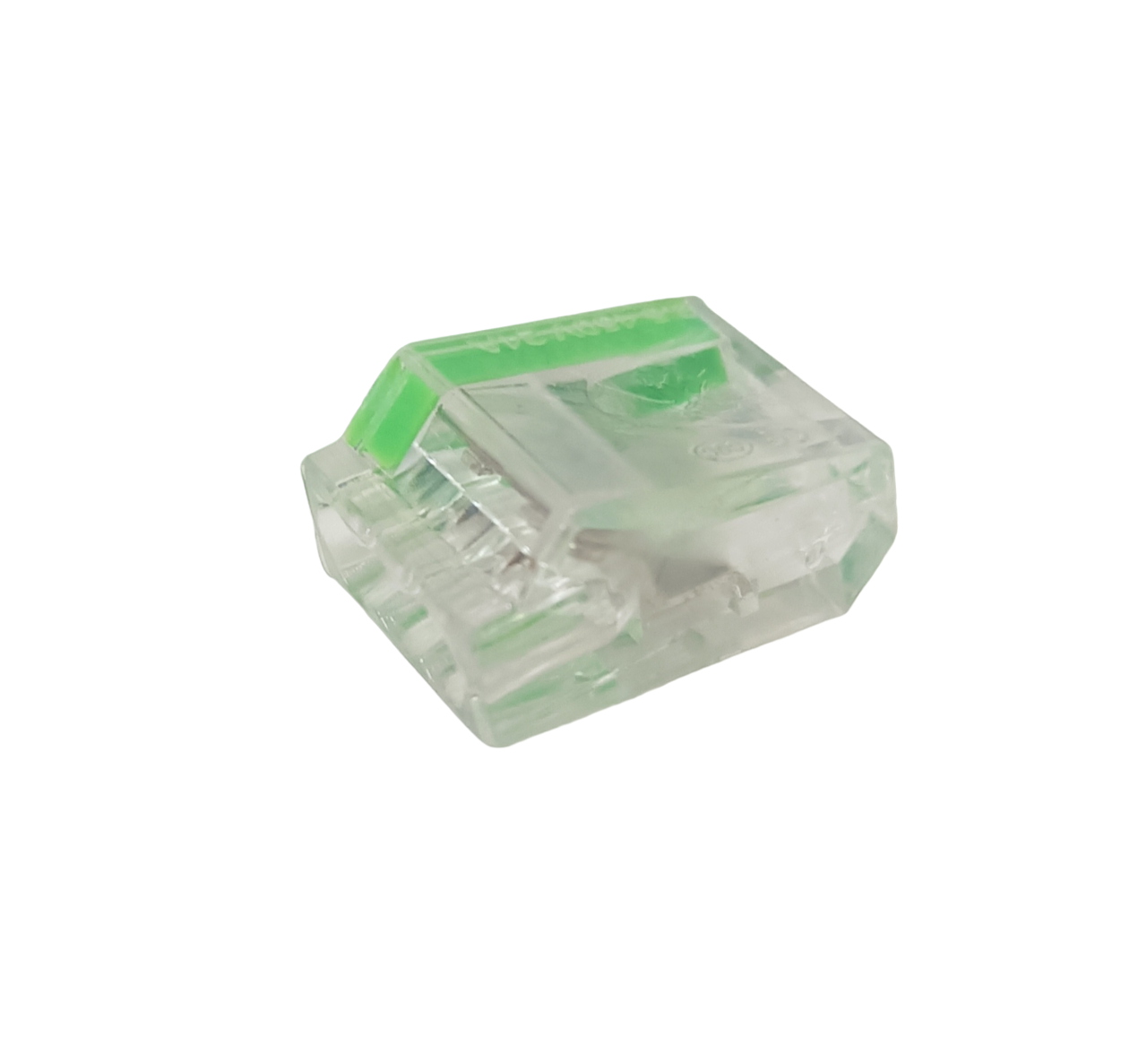

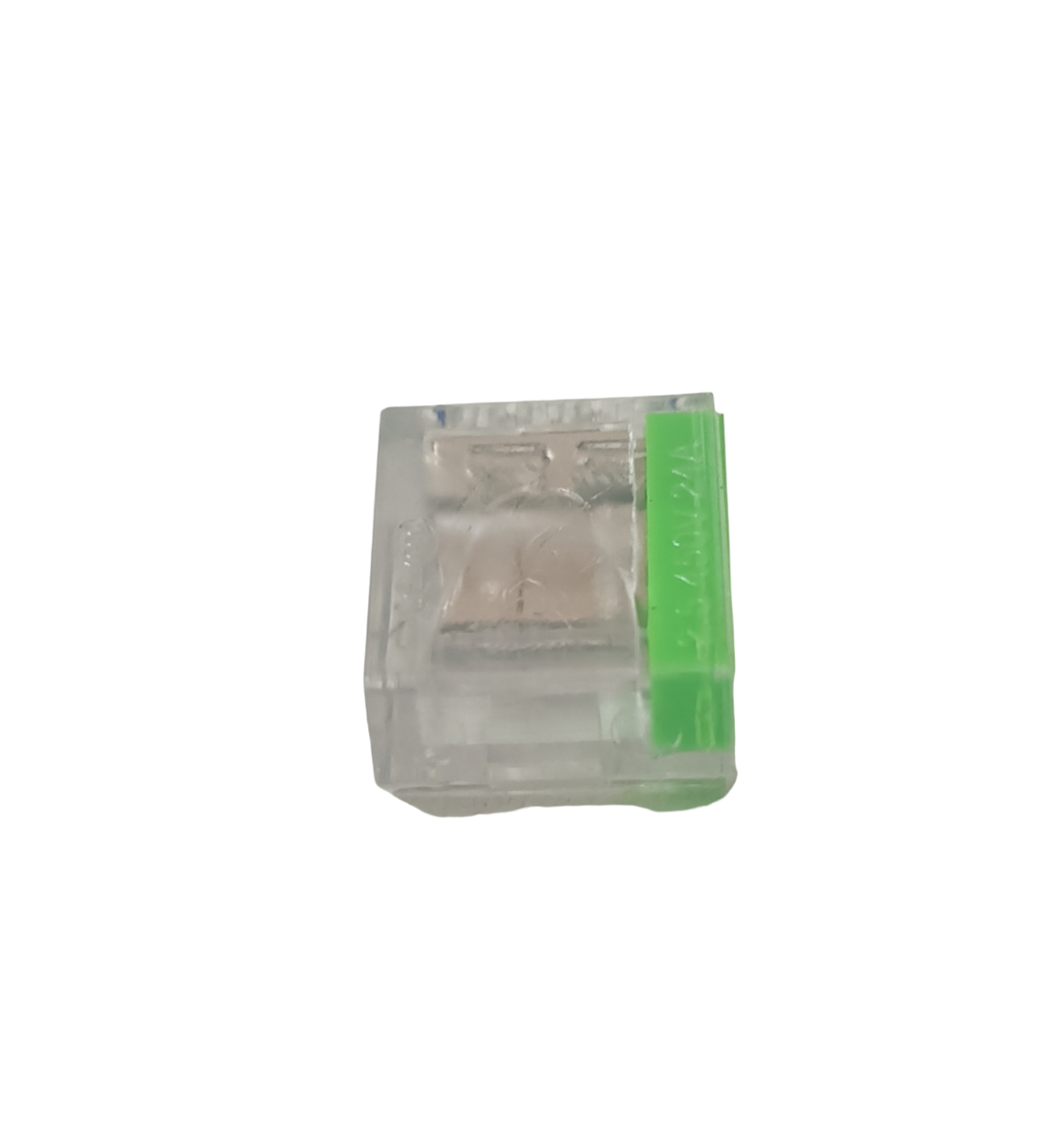

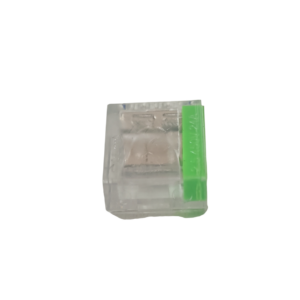

PCT-253 Quick Connection Terminal
This is a PCT-253 Universal Terminal, which is a type of electrical terminal for cable connection. It belongs to the PCT Spring Connector series These connectors have a spring lever that locks the wire securely. They can be used with single-strand hard wires ranging from 0.08mm to 2.5mm2 in cross-sectional area, or soft wires ranging from 0.08mm to 4.0mm2 in cross-sectional area (or AWG28 to AWG12). These connectors can withstand a rated voltage of up to 400V and a peak electric current of 32A, which corresponds to a maximum power of 7KW.
Specification:
| Rated Voltage/Rated Current | Â 400V/24A |
| Wire Range | 0.5-2.5mm2(sol) |
| Withstanding voltage | 4.0KV |
| Ambient temperature | -40°C~+105°C |
| Strip length | 9-10mm |
| Poles | 03P |
| Housing Material | PA66 UL94 V-0 |
| Contact | Copper |
PACKAGE INCLUDES
1 X PCT-253 Quick Connection Terminal
