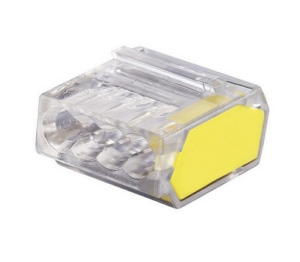

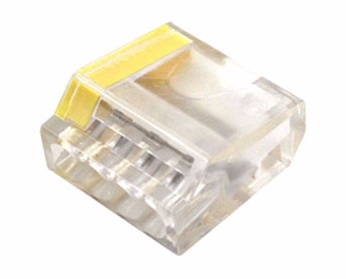

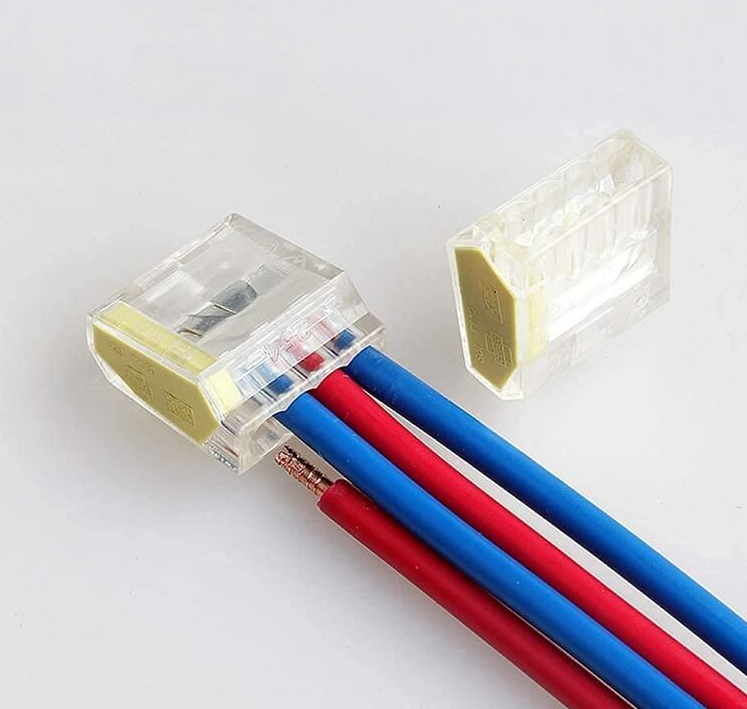

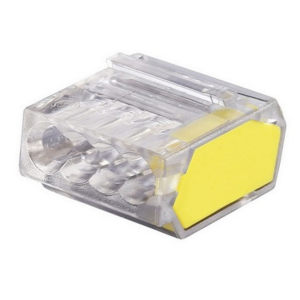

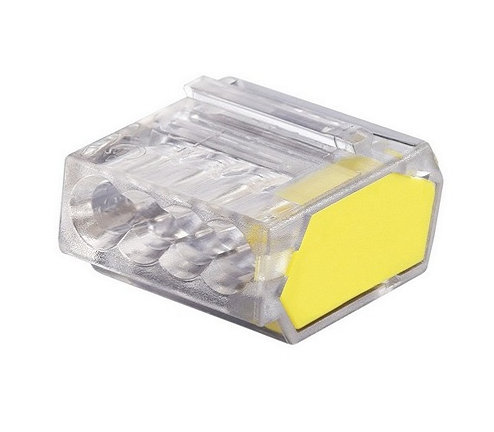

PCT-254 Quick Connection Terminal
Upgrade your electrical connections with the PCT-254 Quick Connection Terminal. Designed for versatility and durability, this terminal is ideal for various applications where secure and efficient electrical connections are needed.
Features:
- Wide Compatibility: Suitable for a wire range of 0.5-2.5mm², offering versatility for various wire sizes.
- High Voltage Withstanding: Withstands up to 4.0KV, ensuring safety and reliability in demanding environments.
- Wide Temperature Range: Operates effectively in temperatures ranging from -40°C to +105°C, making it suitable for a wide range of applications.
- Durable Construction: Constructed with PA66 UL94 V-0 housing material and copper contacts for durability and longevity.
- Easy Installation: Designed for easy installation with a strip length of 9-10mm, facilitating quick and hassle-free connections.
Upgrade your electrical systems with the PCT-254 Quick Connection Terminal and enjoy secure, efficient, and reliable electrical connections for your projects.
Specifications:
| Specification | Details |
|---|---|
| Rated Voltage/Current | 400V/24A |
| Wire Range | 0.5-2.5mm² (sol) |
| Withstanding Voltage | 4.0KV |
| Ambient Temperature | -40°C to +105°C |
| Strip Length | 9-10mm |
| Poles | 4P |
| Housing Material | PA66 UL94 V-0 |
| Contact Material | Copper |
PACKAGE INCLUDES
- 1 X PCT-254 Quick Connection Terminal
