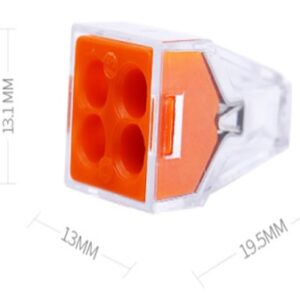

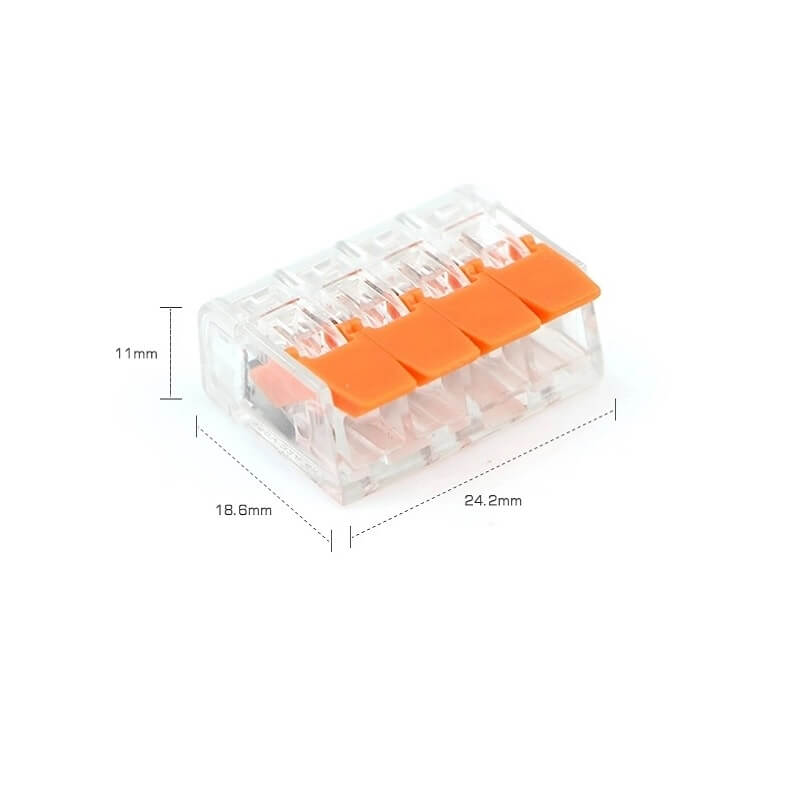

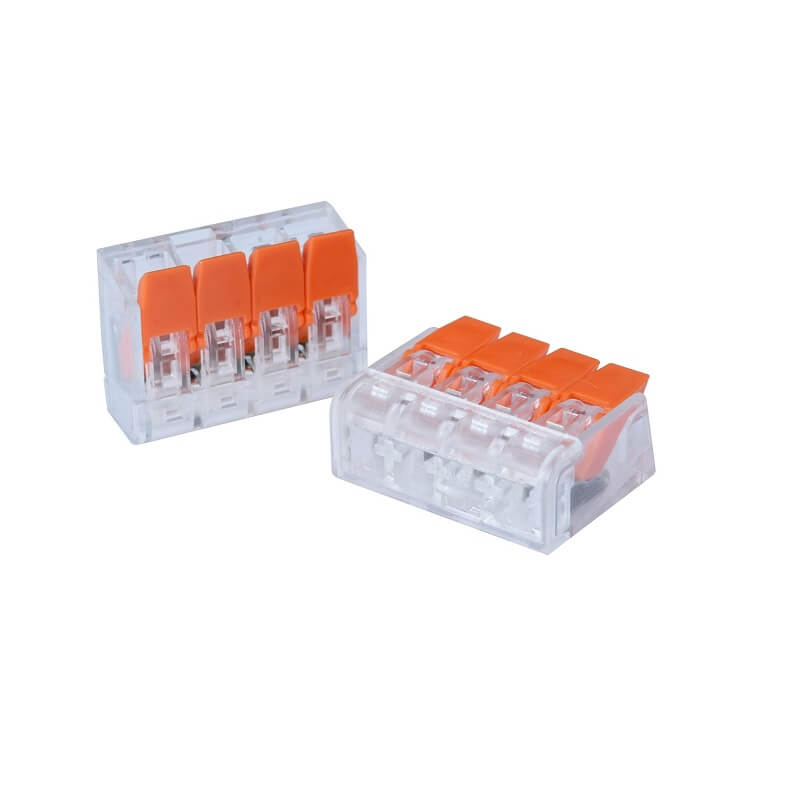

PCT-414 Quick Connection Terminal

PCT-414 – 450V 32A 4 Port Compact Splicing Connector

The PCT Series Compact Push Wire Connector is designed to maximize space efficiency in junction boxes, making it ideal for electrical installations. It supports a range of connection cross-sections from 0.5 to 2.5 mm², with a nominal current rating of up to 32A. The connectors feature clear color coding for easy identification and quick access during installation. The transparent enclosure allows for visual inspection, ensuring correct wiring, and the clear port lets you verify that the conductors are properly stripped. Additionally, the test slots are optimized for compatibility with standard test probes, providing added convenience and safety.

Features:

• The Wire Range of fits: 18-12AWG (0.75-2.5mm2) Solid Cable.
• Made of High Quanlity PA insulating Flame retardant material, long service time, anti-aging, pressure-resistant, anti-corrosion.
• Just strip wire and push-in,No twisting, taping or crimping required,Clear housing for visual inspection,easy to use
• Fast connectors widely use for HVAC control circuits, mains voltage ring-main, domestic lighting, or as an alternative to the conventional junction box

How to use
1.Open the housing of wire to 0.35-0.47 inches.(Make sure enough length that wires are plugged into the end)
2.Push the orange lever to 90°and plug the wires.
3.Plug the wires and press the lever down.
4.Replacing wires method: Push the operating levers to pull the wires out.

Features/Specs:

• Housing Material: PA66 UL94 V-0
• Model No: PCT-414
• Vltage Rating: 450V
• Current Rating: 32A
• Wire Range: 0.5 to 2.5mm2
• Support Wire Gauge: 18 ~ 12 AWG
• No Of Poles: 4 Poles
• Wire Strip Length: 8 ~ 10mm
• Color: Transparent + Orange
• Operating Temperature Range: -40 to 105°C
• Approx Weight: 5 gm

PACKAGE INCLUDES

• 1 X  PCT-414 Quick Connection Terminal
