Product Description

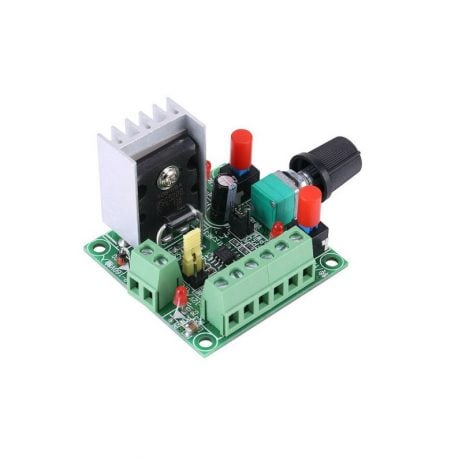

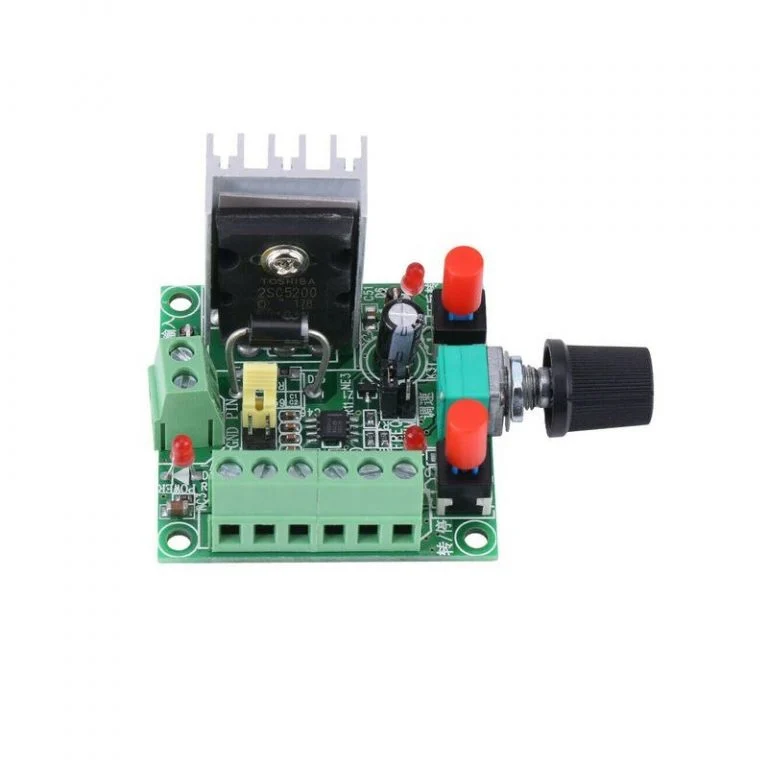

This board is a Stepper Motor Controller based on the TOSHIBA 2SC5200. It can generate PWM signals for the stepper motor driver and control the motor’s rotation direction (CW or CCW) with onboard buttons. The motor’s speed can be adjusted with the onboard potentiometer.
The board can also produce a frequency pulse signal, which can be switched between high and low frequency with the onboard jumper.
Note:
1. If you want to use the start or stop function, the ENA enable terminal on the controller must be connected to the driver with a common cathode or a common anode.
2. The forward and reverse rotation and the start and stop of the motor can be controlled by pressing the button.
3. The speed of the motor can be controlled by adjusting the potentiometer to change the frequency.
4. The switch of the motor’s forward / reverse rotation and start/stop is an ordinary switch with self-locking.
5. If you want to connect the switches that control forward and reverse, and open or stop, to the chassis panel, you can refer to the following instructions.

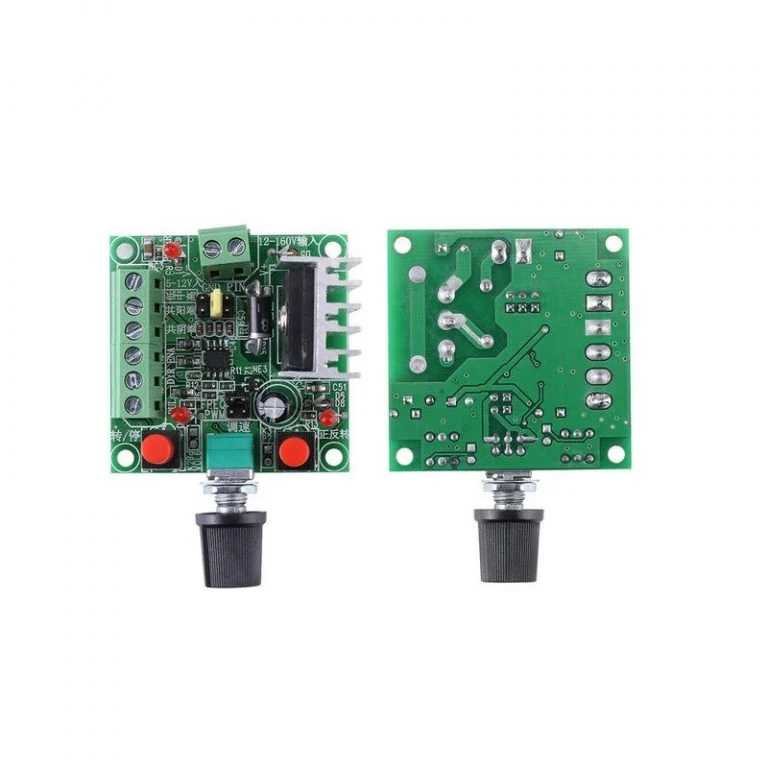

 Change the forward and reverse, the start-stop button into a lead-wire switch, see the pin position on the back:
We also have a variety of 3D Printers and accessories from the Brand CREALITYÂ at the best price in INDIA,
Features:

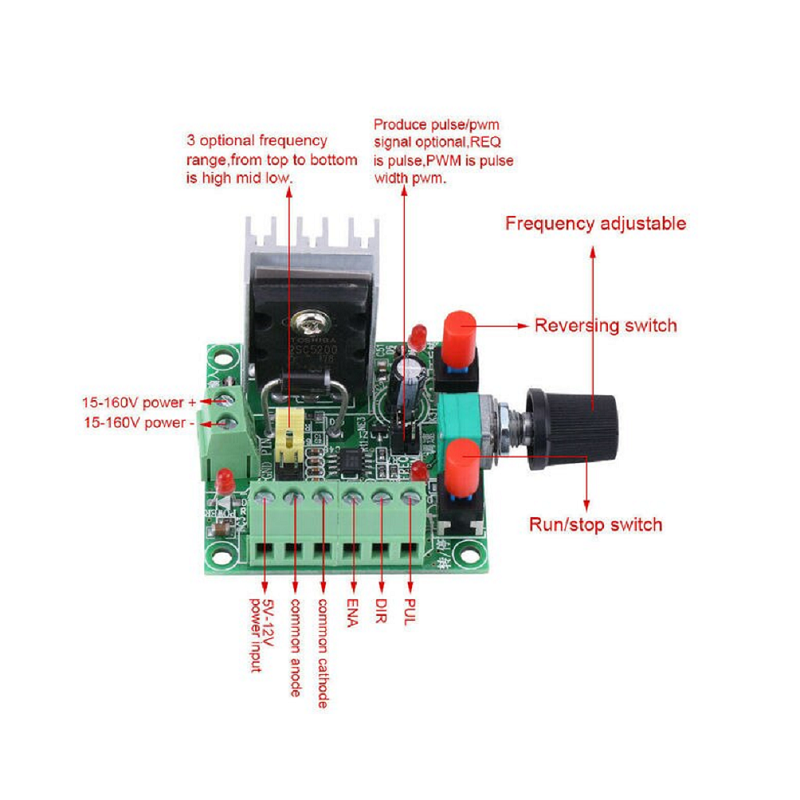

- It has three frequency ranges selectable via onboard jumpers.
- Frequency can be measured via PUL and common cathode (GND) ports.
- The board has two sets of power input
Package Includes:
1 x Stepper Motor Drive Simple Controller Speed Forward and Reverse Control Pulse Generation PWM Generation Controller
