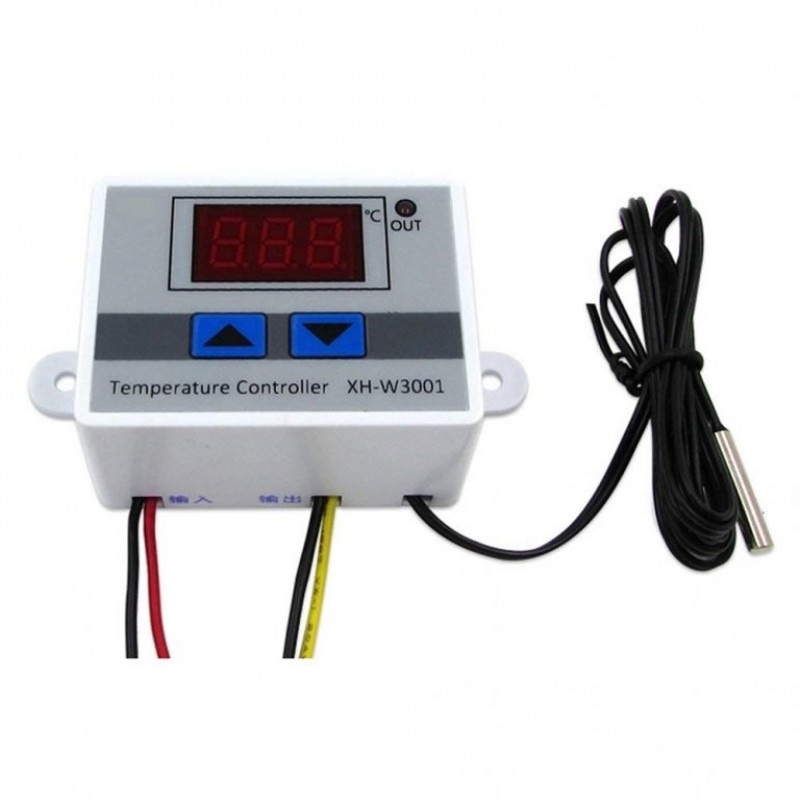

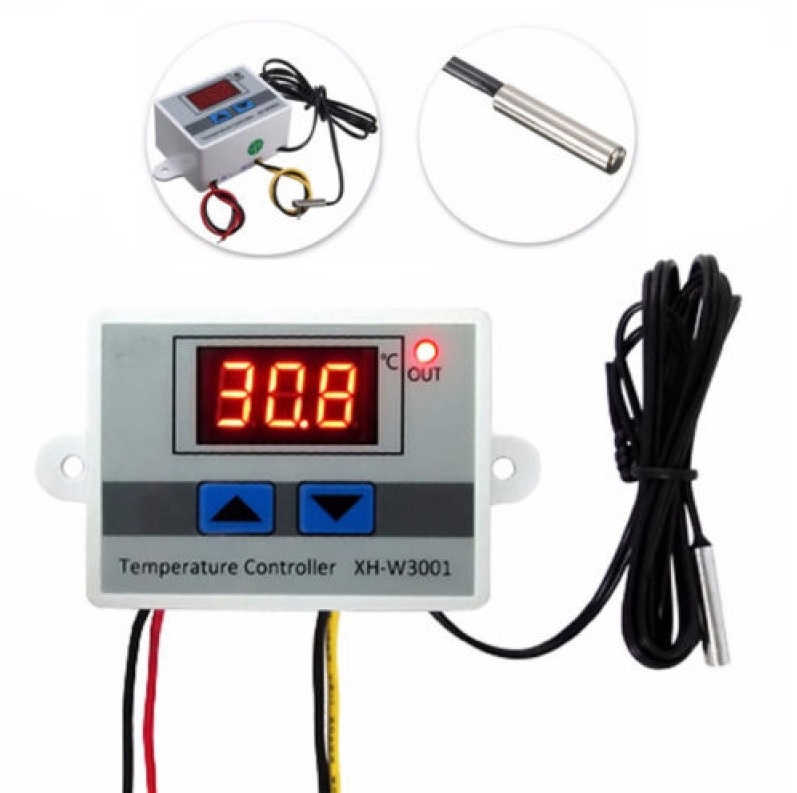

XH-W3001 DC 12V 120W Digital Microcomputer Thermostat Switch
This is an XH-W3001 DC 12V 120W Digital Microcomputer Thermostat Switch. A temperature measurement and Controller tool with high accuracy and precision at the very low cost.
It offers high-temperature control precision of 0.1. The temperature control range from -50 to 110.
It features a 1M probe made up of stainless steel material which makes is waterproof and does not let it rust easily. Also, all the delicate and sensitive components are kept safe in ABS flame retardant housing which is a virulent and environmental protective.
Button FunctionsÂ
- Press UP to show start temperature button.
- On Long press of the UP button, the display starts Flashing, then press the UP or DOWN button Set the beginning of the temperature value
- Press Down the display button to stop temperature.
- On Long press of the Down button, the display starts Flashing, then press the UP or Down button Set to stop the temperature value.
Features
Easy to install
Output type: Direct Output
Output capacity: MAX 10Aemperature measurement, display; refrigeration, heating control
Temperature setting upper and lower limits
Simple operation, suitable for seafood machines.
Upper key: The start temperature is displayed in one press, and long press to set start temperature.
Lower key: The stop temperature is displayed in one press and long press to set stop temperature.
Specifications:
| Rated Power (W) | 120 |
|---|---|
| Rated Current (mA) | 10 Amp Max. |
| Measurement Input | NTC10K |
| Temp. Measuring Range (°C) | -50 ~ 110 |
| Temperature Control Range (°C) | -50 ~ 110 |
| Control Accuracy | Upto 0.1℃ |
| Measuring Accuraccy | ± 0.2 ℃ |
| Temp Probe Cable Length | 1 Meter |
| Dimensions (LxWxH) mm | 60 x 45 x 31 |
| Weight (g): | 55 |
| Shell Material | Plastic |
Package Includes
1 x XH-W3001 DC 12V 120W Digital Microcomputer Thermostat Switch
